LTHW fan convectors for commercial and public buildings
Belgravia Classic Fan Convectors are LTHW heaters that blow warm air from a hot water coil into the room, using quiet EC fans with three speeds. The range comes in four sizes and 14 casing styles, for floor, wall, ceiling or recessed mounting, with outputs up to 16.3 kW.
Manufactured in Leicester by S & P Coil Products Limited, Belgravia Classic Fan Convectors have heated schools for decades and are also specified for offices, libraries, churches, fire stations and other commercial and public buildings. Enhanced and lowflow coil options give useful outputs from low water temperatures, so the same units suit heat pump systems as well as traditional boilers.
Floor, wall or ceiling
Vertical, horizontal, inverted and recessed casing styles
Heat pump ready
Enhanced and lowflow coils for low water temperatures
BMS ready
On/off or 0-10V fan speed control from a BMS
Made in Leicester
Designed and built by SPC in Leicester, UK
Up to 16.3 kW
Heating output from a BEL150 unit at high fan speed, with 80/70°C water and 18°C air.
6.8 kW at 45/35°C
From a BEL150 unit with the enhanced coil at high fan speed and 18°C air: for heat pump systems.
14 casing styles
Vertical and horizontal styles from 600 mm to 2000 mm tall, most also with reversed air flow or inverted casing.
43°C
Maximum casing surface temperature with the Active LST option (A and BS styles), the NHS guideline threshold.
What are Belgravia Classic Fan Convectors?
Belgravia Classic Fan Convectors are fan-assisted heaters for LTHW (low temperature hot water) systems. A fan draws room air in through the inlet grille, across a coil heat exchanger made by SPC fed with hot water, and blows warm air back into the room through the outlet grille. Fan speed and the hot water flow can both be controlled, so the Belgravia Classic responds quickly when a room needs heat.
The Belgravia Classic has a traditional rectangular casing with clean lines. It comes in white (RAL 9010) casing and grilles, or white with black grilles, and can be painted in a special finish to order. For a casing with rounded corners, see Belgravia Supreme Fan Convectors, and for the whole range, see Belgravia Fan Convectors.

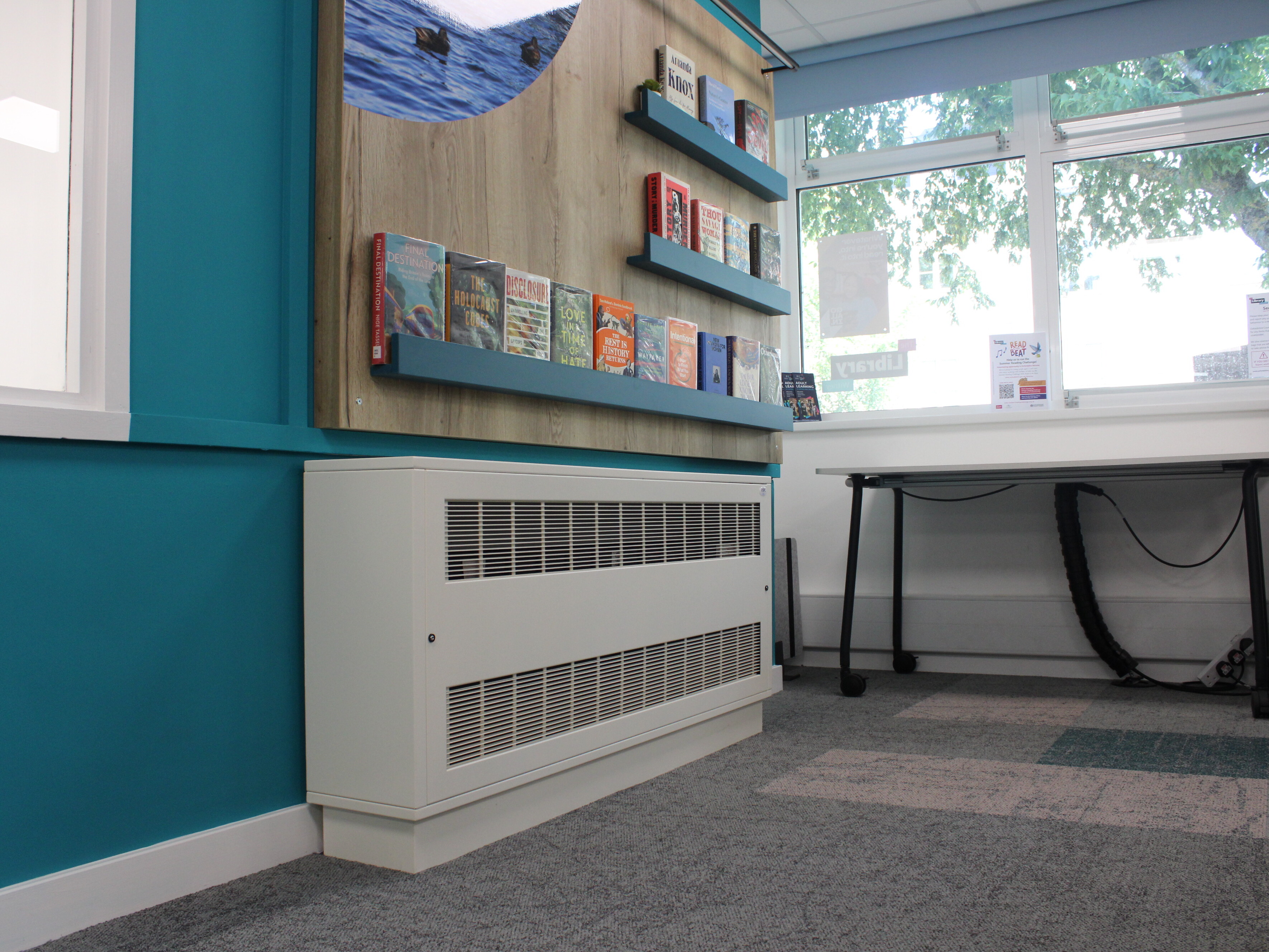

Belgravia Classic Fan Convector installed at Witney Library, Oxfordshire
What sizes do Belgravia Classic Fan Convectors come in?
Belgravia Classic Fan Convectors come in four lengths, all 250 mm deep. An extended casing, which houses on/off valves inside the unit, is available on the three smaller sizes.
| Model | Case length (mm) | Extended case length (mm) | Weight (kg) |
|---|---|---|---|
| BEL40 | 700 | 900 | 32 |
| BEL60 | 900 | 1200 | 36 |
| BEL90 | 1200 | 1500 | 45 |
| BEL150 | 1500 | Not available | 57 |
Planning heating for a school, church or refurbishment? Read our guides: Specifying Fan Convectors for Schools: What to Choose for a Half-Term or Holiday Window and Are Fan Convectors a Good Choice for Church Heating?
How much heat does a Belgravia Classic Fan Convector give?
At 80/70°C water and 18°C air, Belgravia Classic outputs at high fan speed range from 5.7 kW (BEL40) to 16.3 kW (BEL150).
- Three fan speeds (high, medium and low), set by thermostat, switch or BMS
- EC fans with a specific fan power as low as 0.12 W/l/s at low speed
- Noise from NR32 at low speed, with the room conditions stated in the brochure
Can fan convectors work with heat pumps?
Yes. Belgravia Classic Fan Convectors can be fitted with an enhanced or lowflow coil for water temperatures below 60°C.
- Enhanced coil: more surface area for low water temperatures at standard flow rates
- Lowflow coil: for low flow rates and wide temperature differences, with ½” connections
- A BEL150 with the enhanced coil gives 6.8 kW at 45/35°C, high speed, 18°C air
Can a Belgravia Classic have a low surface temperature?
Yes. With the Active LST option, available on the A and BS styles, Belgravia Classic Fan Convectors keep the hottest part of the casing at or below 43°C.
- A sensor monitors the outlet grille, the hottest point on the casing
- An independent valve modulates the water flow to hold the set temperature
- Factory fitted, with no extra pipework or wiring: see Active LST Fan Convectors
Full performance data for every size, speed and water temperature is in the Fan Convector Brochure.
Belgravia Classic casing styles, controls and options
Belgravia Classic Fan Convectors come in nine vertical styles (A, B, BS, J, HS, K, X, Y and Z) and five horizontal styles (QS, S, U, V and VS). Most styles are also available with reversed air flow, and the B, BS, V and VS styles with an inverted casing.
Vertical
Low-level floor or wall mounting.
Horizontal
Ceiling mounted, exposed or concealed in a ceiling void.
Inverted
High-level wall mounting.
Recessed
Set into an alcove, flush with the wall.
Belgravia Classic Fan Convectors can be controlled locally, from a room thermostat or from a building management system.
- Built-in on/off or change speed thermostats (T1, T2)
- Remote and tamper-proof thermostats (RT1, RT2, TRT1, TRT2)
- SPC Modulo proportional touch controller and the SPC Vision digital controller
- Rocker switches for on/off, summer/winter and fan speed
- BMS relay for remote enable/disable (BMS1) and on/off plus fan speed via 0-10V (BMS2)
- Low water temperature fan cut-outs (LTC, ALTC) for boiler systems; these are not suitable for weather-compensated heat pump systems
Belgravia Classic Fan Convectors can be built with the accessories a project needs. Check the brochure’s accessories table for the options available on each style.
- Extended casing to house on/off valves inside the unit (BEL40, BEL60, BEL90)
- Isolating valves and 2-port on/off valves for waterside control
- Air filters, plinths and loose grille assemblies
- Lockable or tamper-proof access panels
- Fuse spur box and customer connection box
- Special paint finishes in RAL colours
- Electric heating element version for BEL40, BEL60 and BEL90 (A style, 400V three phase)
Project support from SPC: from survey to commissioning
SPC manufactures and supplies Belgravia Classic Fan Convectors for installation by your M&E contractor, and supports the project from the first survey to handover.
Site surveys
We visit site to check mounting positions and which casing styles suit each room.
Selection
We size each unit and choose the coil for your water temperatures.
Technical support
Our technical team answers coil, control and installation questions.
Area Sales Managers
A local ASM supports you from specification to delivery.
Specifying Belgravia Classic Fan Convectors
Free tools to select units and add them to your BIM model.
Select units online
Size and configure Belgravia Classic Fan Convectors with our free online configurator, which also covers our other fan convectors, air curtains and unit heaters.
Download BIM objects
Add Belgravia Classic Fan Convectors to your BIM model. Our BIM objects are free to download from SPC on bimstore, alongside the rest of the SPC range.
Belgravia Classic Fan Convectors in UK projects

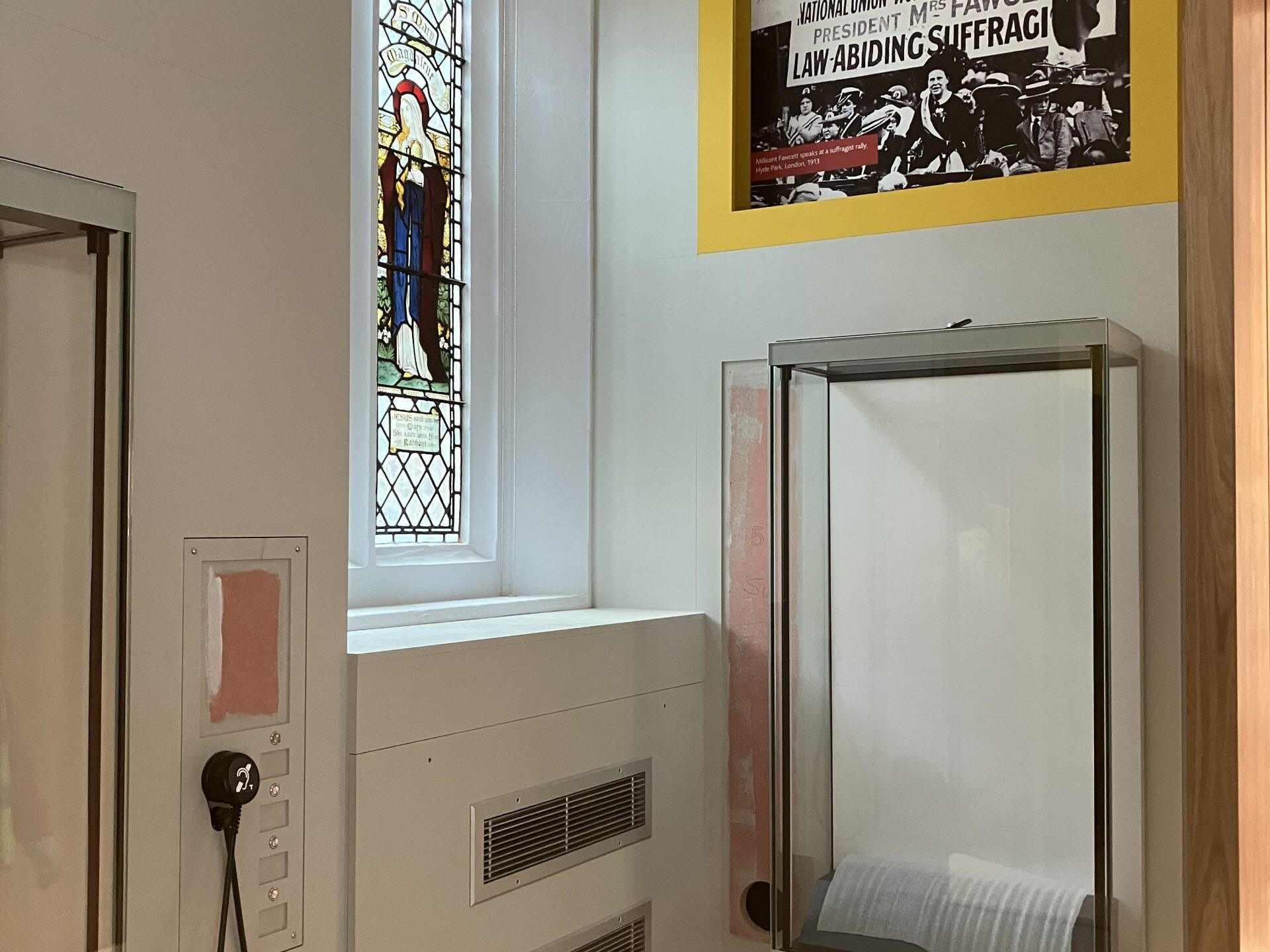

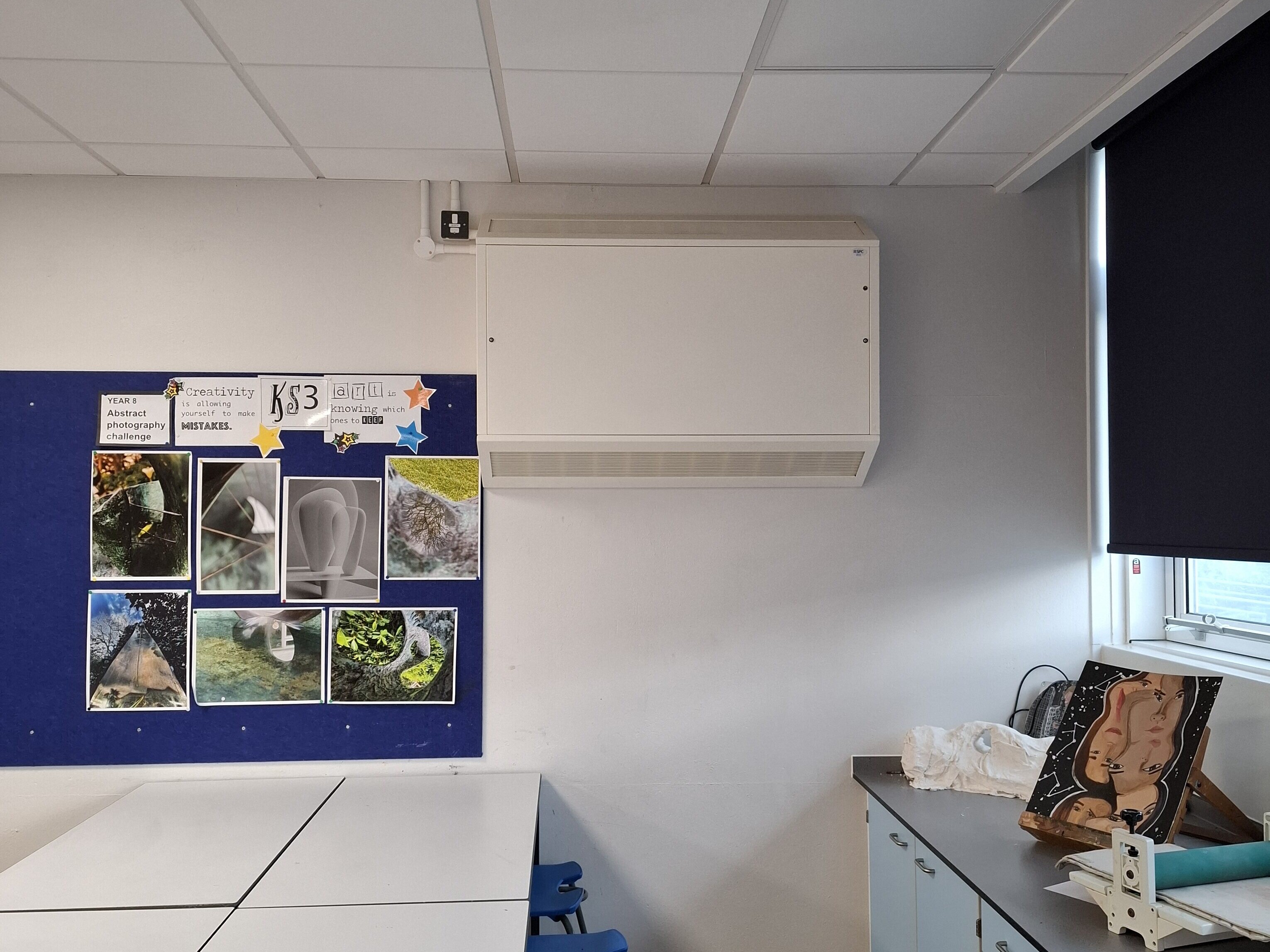

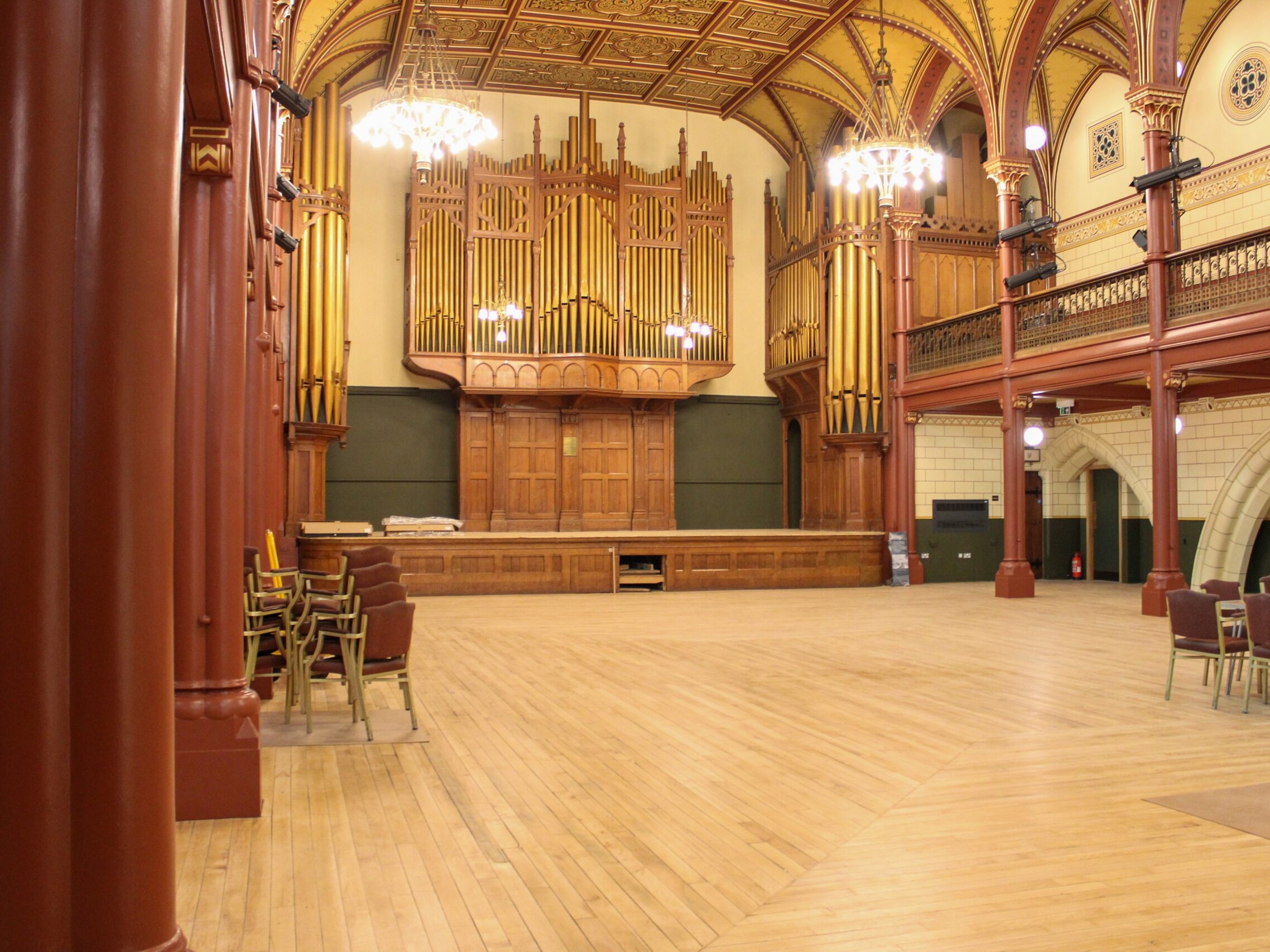

Belgravia Classic Fan Convectors heat schools, libraries, churches, a museum and a fire station across the UK, including Treviglas Academy, Witney Library, Dorking Fire Station, Dover Town Hall and Salisbury Museum. See more in our Belgravia Fan Convector projects.
Belgravia Classic Fan Convector specification summary
| Feature | Belgravia Classic |
|---|---|
| Sizes | BEL40, BEL60, BEL90, BEL150 |
| Case lengths | 700, 900, 1200 and 1500 mm; extended casings 900, 1200 and 1500 mm (BEL40 to BEL90) |
| Case heights | 600 mm (A, B, J, K, S, U, V); 725 mm (BS, VS); 850 mm (HS, QS); 2000 mm (X, Y, Z, other heights on request) |
| Depth | 250 mm (all styles) |
| Weights | 32 to 57 kg (standard casing) |
| Heating output | Up to 16.3 kW (BEL150, high speed, 80/70°C water, 18°C air) |
| Low water temperature coils | Enhanced coil and lowflow coil options; outputs published at 60/45, 50/40, 50/35 and 45/35°C |
| Fans | EC fans, three speeds |
| Electrical supply | 230 V / 50 Hz (LTHW units); 400 V / 50 Hz / 3 phase (electric units) |
| Pipe connections | ¾” BSP (½” on lowflow coils) |
| Noise | NR32 to NR46 depending on size and fan speed (wall mounted, room reverberation time 0.4 seconds) |
| Finish | White casing and grilles (RAL 9010) or white with black grilles; special paint finishes to order |
| Low surface temperature | Active LST option on A and BS styles, casing held at or below 43°C |
| Controls | Thermostats, switches, SPC Modulo, SPC Vision, BMS enable and 0-10V speed control |
| Manufactured | Leicester, UK, by S & P Coil Products Limited (ISO 9001:2015) |
Discuss your fan convector project
Planning heating for a school, office, library, church or other commercial or public building? Tell us about your project and we will help you choose the right Belgravia Classic Fan Convectors. Call 0116 249 0044 or email spc@spc-hvac.co.uk.
Frequently Asked Questions
Yes, in practice. LTHW (low temperature hot water) and LPHW (low pressure hot water) are both used in the UK to describe the hot water heating circuits that fan convectors run on. Belgravia Classic Fan Convectors work on these systems, from traditional boiler flow temperatures of around 80°C down to heat pump temperatures when fitted with an enhanced or lowflow coil.
Below 60°C flow, choose the enhanced coil, which has more surface area to keep useful outputs at standard flow rates. If the system also runs at low flow rates with a wide temperature difference between flow and return, choose the lowflow coil, which uses ½” connections. Our team can select the coil for your water temperatures.
Both use the same coil options and are built in Leicester by SPC. The Belgravia Classic has a traditional rectangular casing and the widest choice of styles, including recessed and 2000 mm tall units. The Belgravia Supreme has a casing with no sharp corners. Choose the casing that suits the room and how it is used.
Yes. Recessed styles sit in an alcove with the front of the unit flush with the wall, and horizontal styles can be concealed in a ceiling void with a loose grille assembly. Spigot connections are available for short duct runs to the heated space.
Yes. Belgravia Classic Fan Convectors have been installed in churches, a town hall and a museum, where they heat large, intermittently used spaces and can be painted to suit the interior. Read our guide: Are Fan Convectors a Good Choice for Church Heating?
Yes. The standard finish is white casing and grilles (RAL 9010) or white with black grilles. Special paint finishes are available to order: send us the RAL colour with your enquiry.
Two BMS options are available. BMS1 is a relay for a remote enable/disable signal, and BMS2 gives on/off and fan speed control from a 0-10V signal. Units can also be controlled by local thermostats, switches or the SPC Modulo and SPC Vision controllers.
Yes. Electric heating element versions of the BEL40, BEL60 and BEL90 give 3.75 kW, 6.0 kW and 9.0 kW from a 400 V three phase supply. Electric units are available in the A style only, with on/off control by switch, remote thermostat or BMS.
Yes. Belgravia Classic Fan Convector BIM objects are available from SPC on bimstore. Dimensions for every style are also in the Belgravia Classic IOM in the downloads below.
