Ceiling fan convectors for boiler and heat pump systems
Belgravia Tilevector Fan Convectors are LTHW heaters that sit in the ceiling in place of one or two ceiling tiles, keeping walls and floors clear. EC fans blow warm air from a hot water coil down into the room. The range has four models in two sizes: the Tilevector Solo and Tilevector Duo for traditional boiler water temperatures, and the Tilevector Solo Plus and Tilevector Duo Plus for heat pumps and condensing boilers.
Manufactured in Leicester by S & P Coil Products Limited, Belgravia Tilevector Fan Convectors are specified for schools, offices, libraries, leisure centres and other commercial and public buildings with suspended or plasterboard ceilings.
Fits the ceiling grid
Replaces one or two 600 mm ceiling tiles
Boiler or heat pump
Standard and Plus models for each system
BMS ready
Remote thermostats, SPC Modulo and BMS control
Made in Leicester
Designed and built by SPC in Leicester, UK
What are Belgravia Tilevector Fan Convectors?
Belgravia Tilevector Fan Convectors are ceiling-mounted, fan-assisted heaters for LTHW (low temperature hot water) systems. A fan draws room air up through the hinged eggcrate grille, across a coil heat exchanger made by SPC fed with hot water, and blows warm air back down into the room. Fan speed and the hot water flow can both be controlled, so the Belgravia Tilevector responds quickly when a room needs heat.
The Belgravia Tilevector replaces standard ceiling tiles in a T-bar grid, so walls stay free for windows, storage, whiteboards and displays. It can also be fitted in a plasterboard ceiling or hung below a solid ceiling. For the whole range of SPC fan convectors, see Belgravia Fan Convectors.

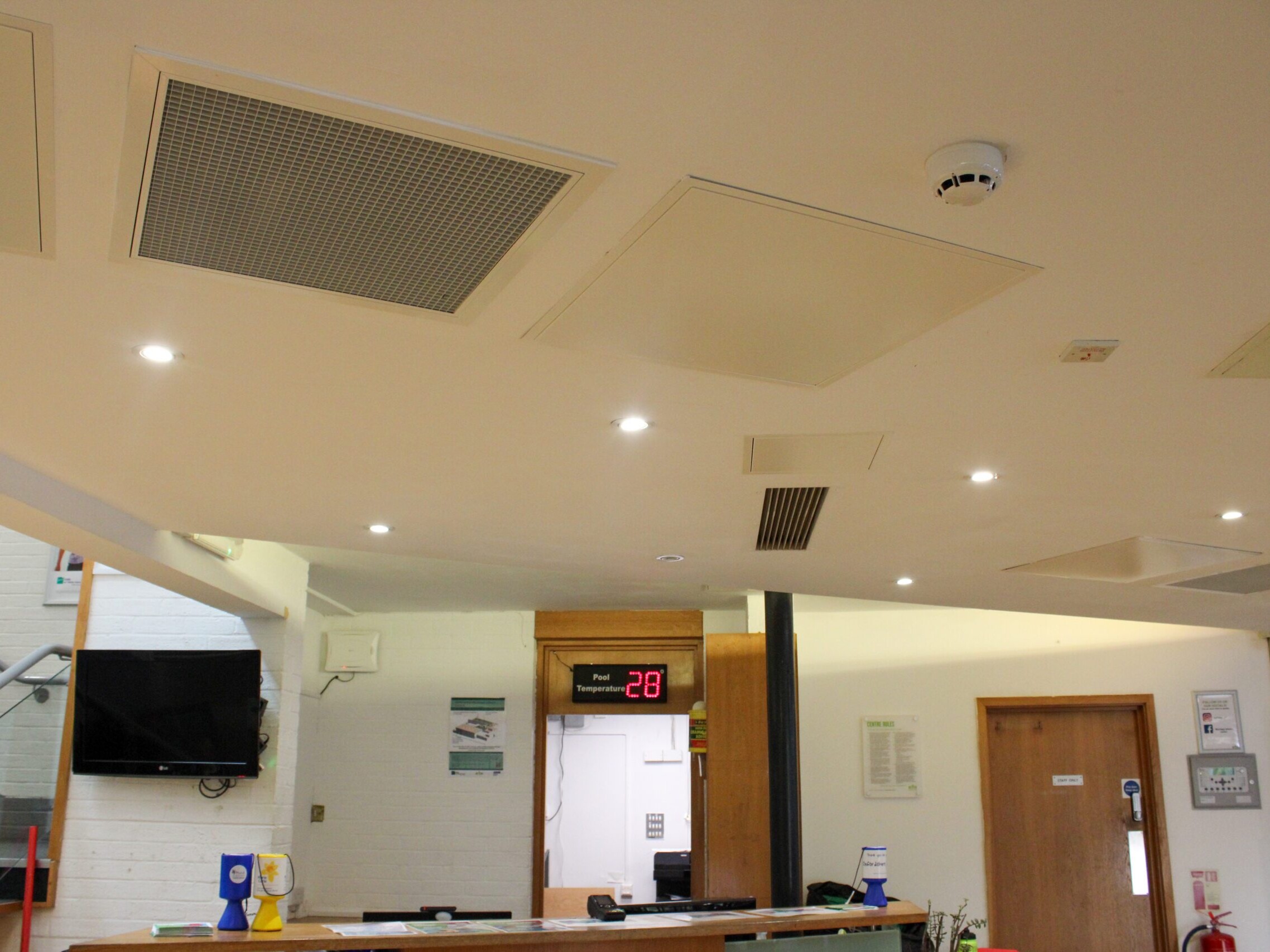

Belgravia Tilevector Fan Convectors in the ceiling at Ystradgynlais Library, Swansea
Planning heating for an office refurbishment or a school? Read our guides: Why Ceiling Tile Fan Convectors Are the Practical Heating Choice for Office Refurbishments and Specifying Fan Convectors for Schools: What to Choose for a Half-Term or Holiday Window
Tilevector Solo and Tilevector Duo: for traditional boiler systems
The Tilevector Solo and Tilevector Duo are designed for the traditional hot water temperatures from conventional boilers, with outputs published at 80/70°C. Both are 210 mm deep.
3.1 to 3.7 kW
Tilevector Solo, low to high fan speed, with 80/70°C water and 18°C air.
7.0 to 8.0 kW
Tilevector Duo, low to medium fan speed, with 80/70°C water and 18°C air.
| Model | Ceiling grid space (mm) | Unit size (mm) | Depth (mm) | Weight (kg) | Plasterboard aperture (mm) |
|---|---|---|---|---|---|
| Tilevector Solo | 600 x 600 | 595 x 595 | 210 | 18 | 575 x 575 |
| Tilevector Duo | 1200 x 600 | 1195 x 595 | 210 | 35 | 1175 x 575 |
- Three EC fan speeds, with airflow from 70 l/s (Solo, low speed) to 170 l/s (Duo, medium speed)
- Noise from NR36 (Solo, low speed), with the room conditions stated in the brochure
- Isolating valves for the flow and return pipes available
- Electric versions: Tilevector Solo 3 kW (230 V single phase) and Tilevector Duo 6 kW (400 V three phase)

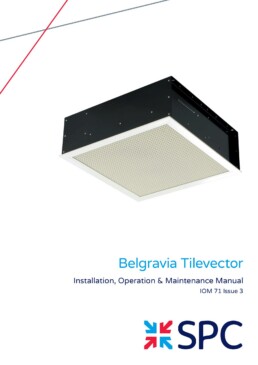

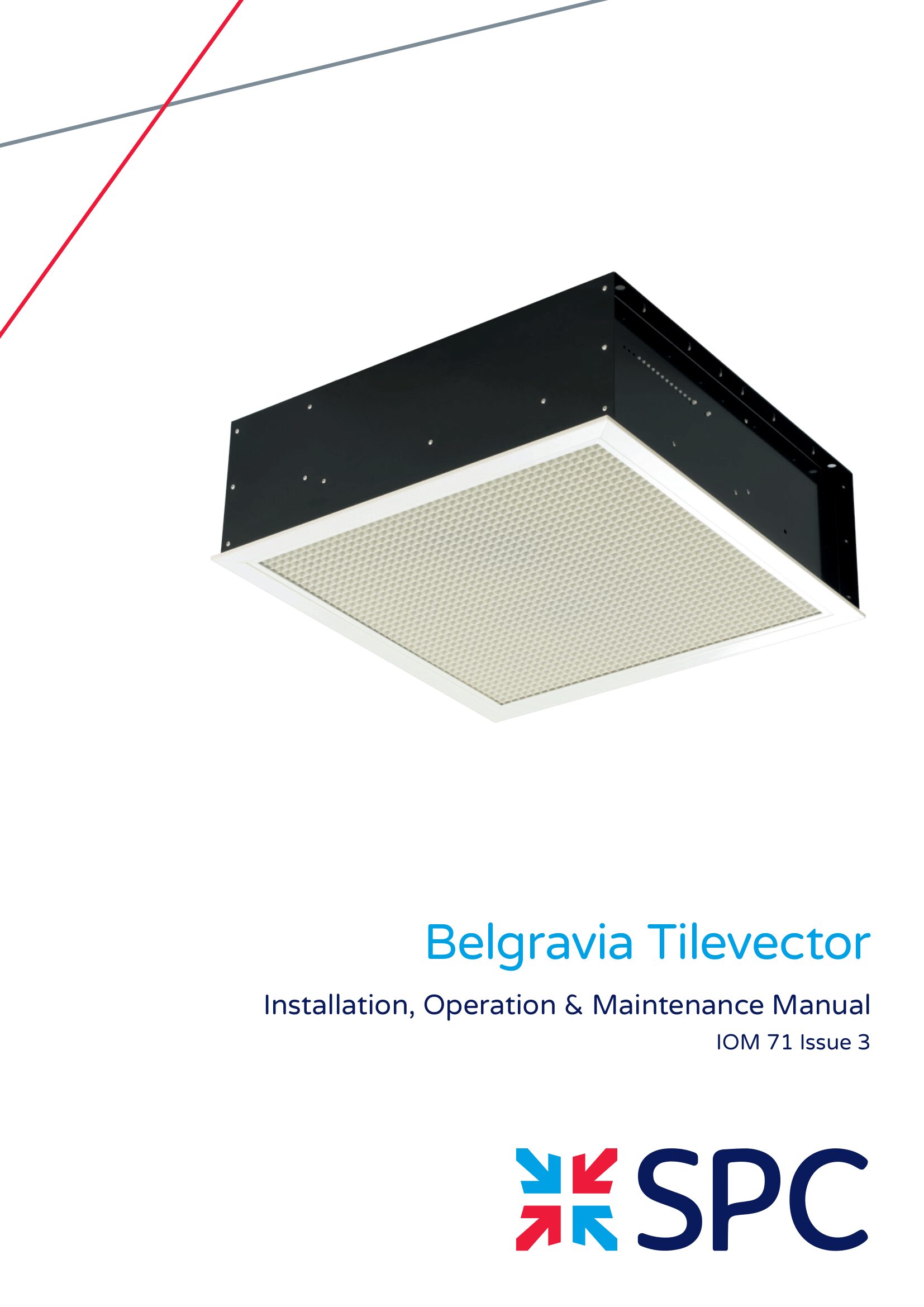

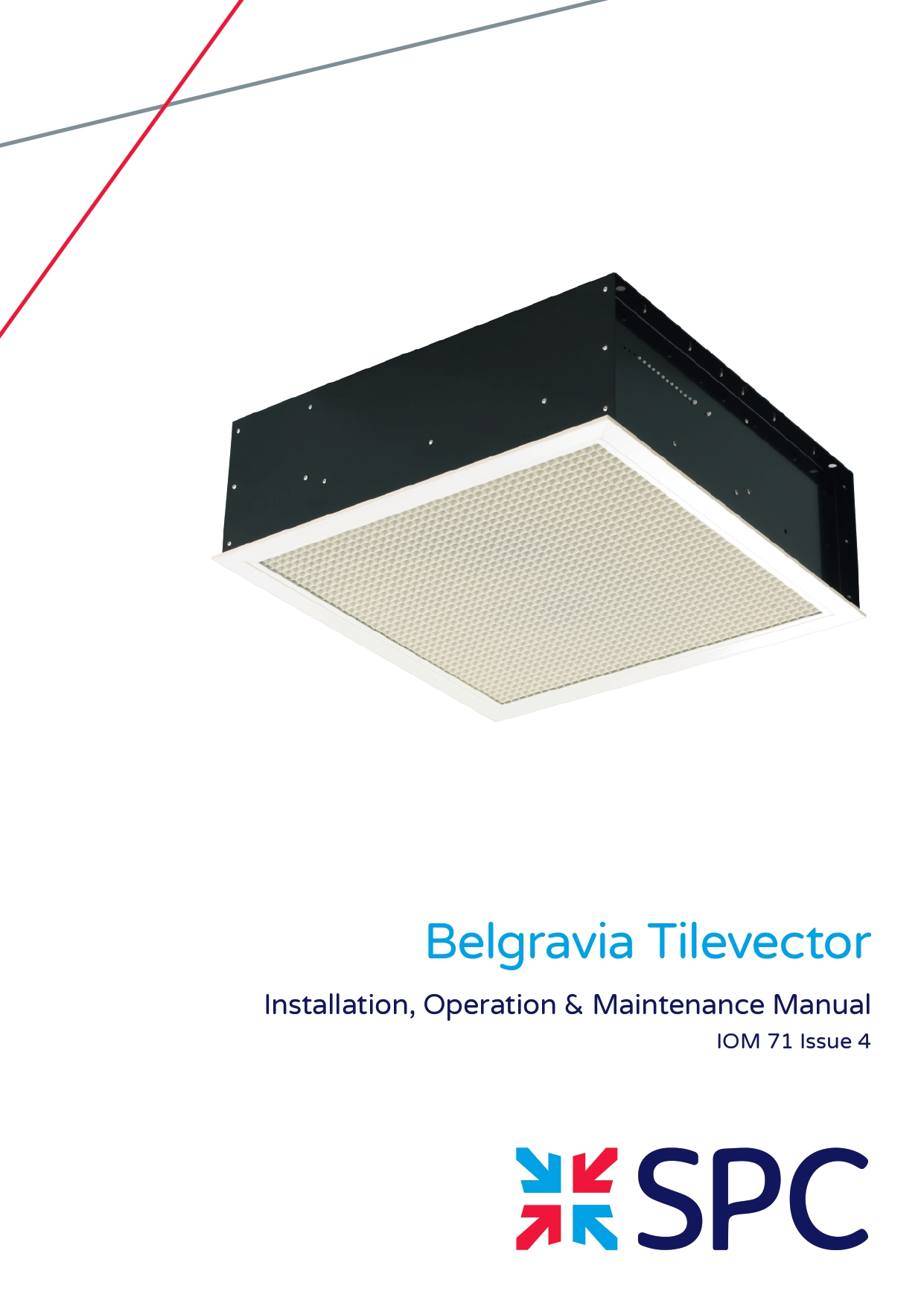

Dimensions and installation details are in the Belgravia Tilevector IOM in the downloads below.
Tilevector Solo Plus and Tilevector Duo Plus: for heat pumps and condensing boilers
The Tilevector Solo Plus and Tilevector Duo Plus have an enhanced heat exchanger and increased airflow for the lower water temperatures from heat pumps and condensing boilers, with outputs published at 50/40, 50/35 and 45/35°C. Both are 260 mm deep.
2.7 to 3.5 kW
Tilevector Solo Plus, low to high fan speed, with 50/40°C water and 18°C air.
5.8 to 7.1 kW
Tilevector Duo Plus, low to medium fan speed, with 50/40°C water and 18°C air.
| Model | Ceiling grid space (mm) | Unit size (mm) | Depth (mm) | Weight (kg) | Plasterboard aperture (mm) |
|---|---|---|---|---|---|
| Tilevector Solo Plus | 600 x 600 | 595 x 595 | 260 | 20 | 575 x 575 |
| Tilevector Duo Plus | 1200 x 600 | 1195 x 595 | 260 | 35 | 1175 x 575 |
- At 45/35°C: 2.1 to 2.8 kW (Solo Plus, low to high speed) and 4.7 to 5.7 kW (Duo Plus, low to medium speed), 18°C air
- Three EC fan speeds, with airflow from 110 l/s (Solo Plus, low speed) to 260 l/s (Duo Plus, medium speed) and a specific fan power as low as 0.14 W/l/s
- Noise from NR34 (Solo Plus, low speed), with the room conditions stated in the brochure

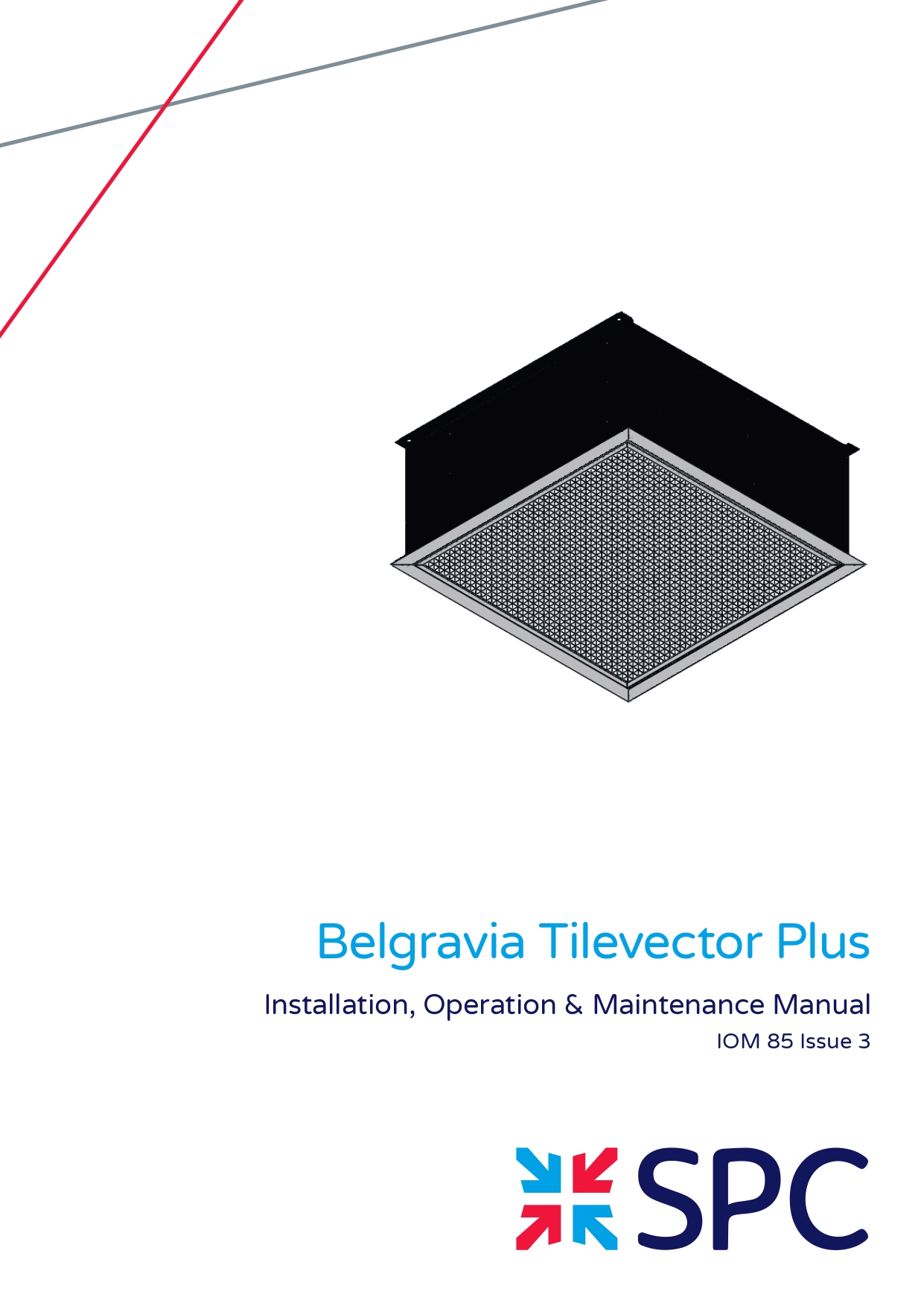

Read about the newest model in SPC Launches the Tilevector Duo Plus: Ceiling Heating Built for Heat Pumps. Full outputs at each water temperature are in the Tilevector Plus Low Water Temperature Data Sheet in the downloads below.
Which ceilings can a Belgravia Tilevector fit?
Every Belgravia Tilevector model fits T-bar suspended ceiling grids and plasterboard ceilings, and can also hang free below a solid ceiling.
- The grille sits inside the T-bars, in place of one or two 600 mm tiles
- Plasterboard apertures of 575 x 575 mm (Solo models) and 1175 x 575 mm (Duo models)
- Fixed to the load-bearing soffit, at least 1.8 m and at most 3 m above the floor (recommended)
Can ceiling fan convectors work with heat pumps?
Yes. Choose the Tilevector Solo Plus or Tilevector Duo Plus, developed for the lower water temperatures from heat pumps and condensing boilers.
- Outputs published down to 45/35°C
- Same 595 mm face sizes as the Tilevector Solo and Duo
- Use remote thermostats, SPC Modulo or BMS control with weather-compensated systems
Which Belgravia Tilevector model do I need?
Choose by the water temperature of the system and the ceiling space in each room.
- Traditional boiler systems (such as 80/70°C): Tilevector Solo or Duo
- Heat pumps and condensing boilers: Tilevector Solo Plus or Duo Plus
- Solo models take one ceiling tile, Duo models take two

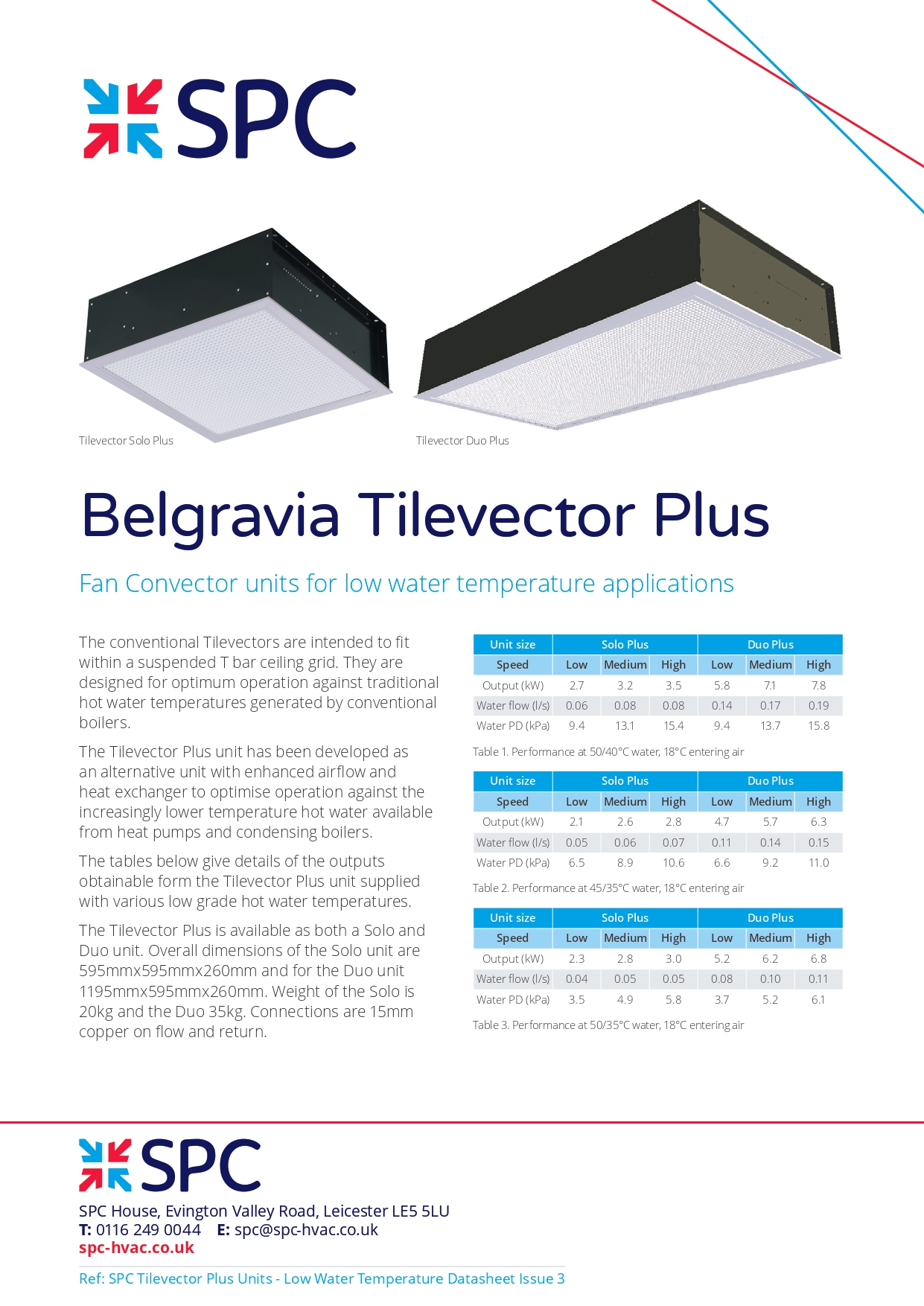

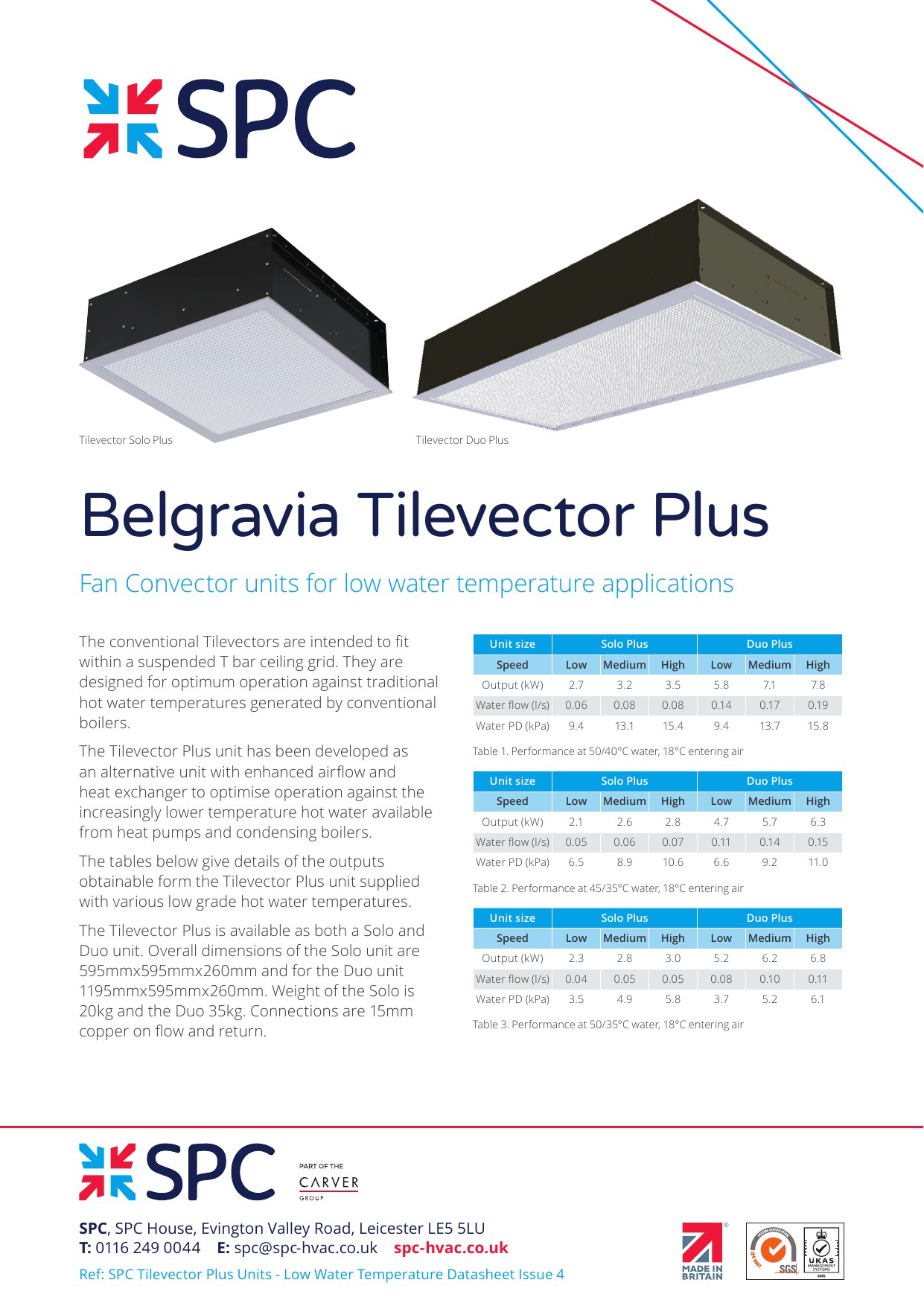

Full performance data for every model, speed and water temperature is in the Fan Convector Brochure and Tilevector Plus Low Water Temperature Data Sheet. Our team can select the model and number of units for each room.
Belgravia Tilevector models, controls and accessories
Every Belgravia Tilevector model has a black casing, a white (RAL 9010) hinged eggcrate grille in aluminium and 15 mm flow and return connections. The standard and Plus models of each size share the same 595 mm face size.
Tilevector Solo and Solo Plus
One 600 x 600 mm tile. 595 x 595 mm; 210 mm deep (Solo) or 260 mm deep (Solo Plus).
Tilevector Duo and Duo Plus
Two 600 x 600 mm tiles. 1195 x 595 mm; 210 mm deep (Duo) or 260 mm deep (Duo Plus).
Belgravia Tilevector Fan Convectors are controlled remotely: from a room thermostat, switches or a building management system.

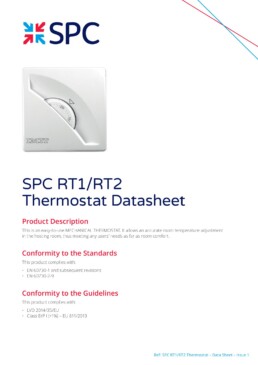

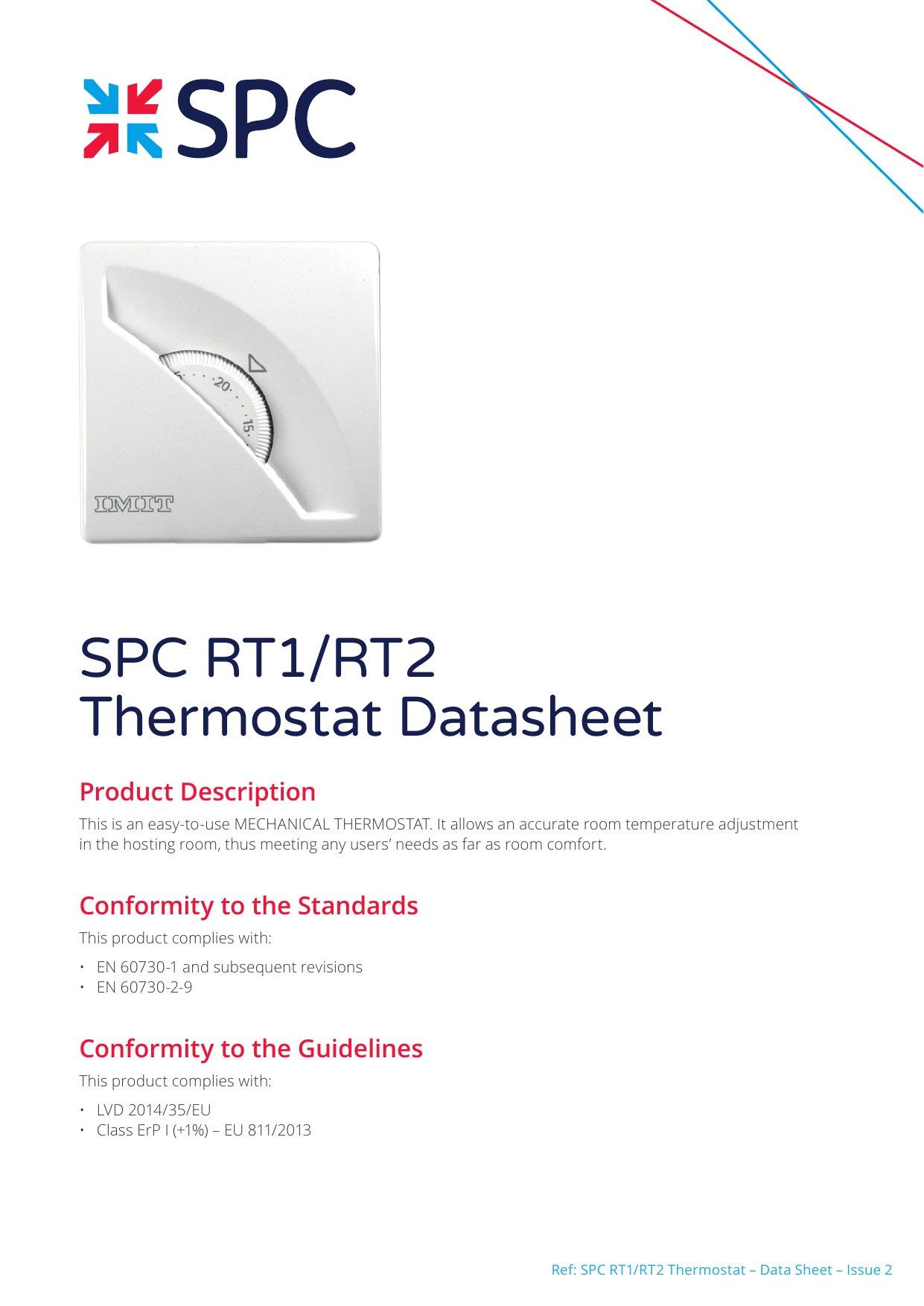

- Remote and tamper-proof thermostats (RT1, RT2, TRT1, TRT2)
- SPC Modulo proportional touch controller and the SPC Vision digital controller
- Rocker switches for on/off, summer/winter and fan speed
- BMS relay for remote enable/disable (BMS1) and on/off plus fan speed via 0-10V (BMS2)

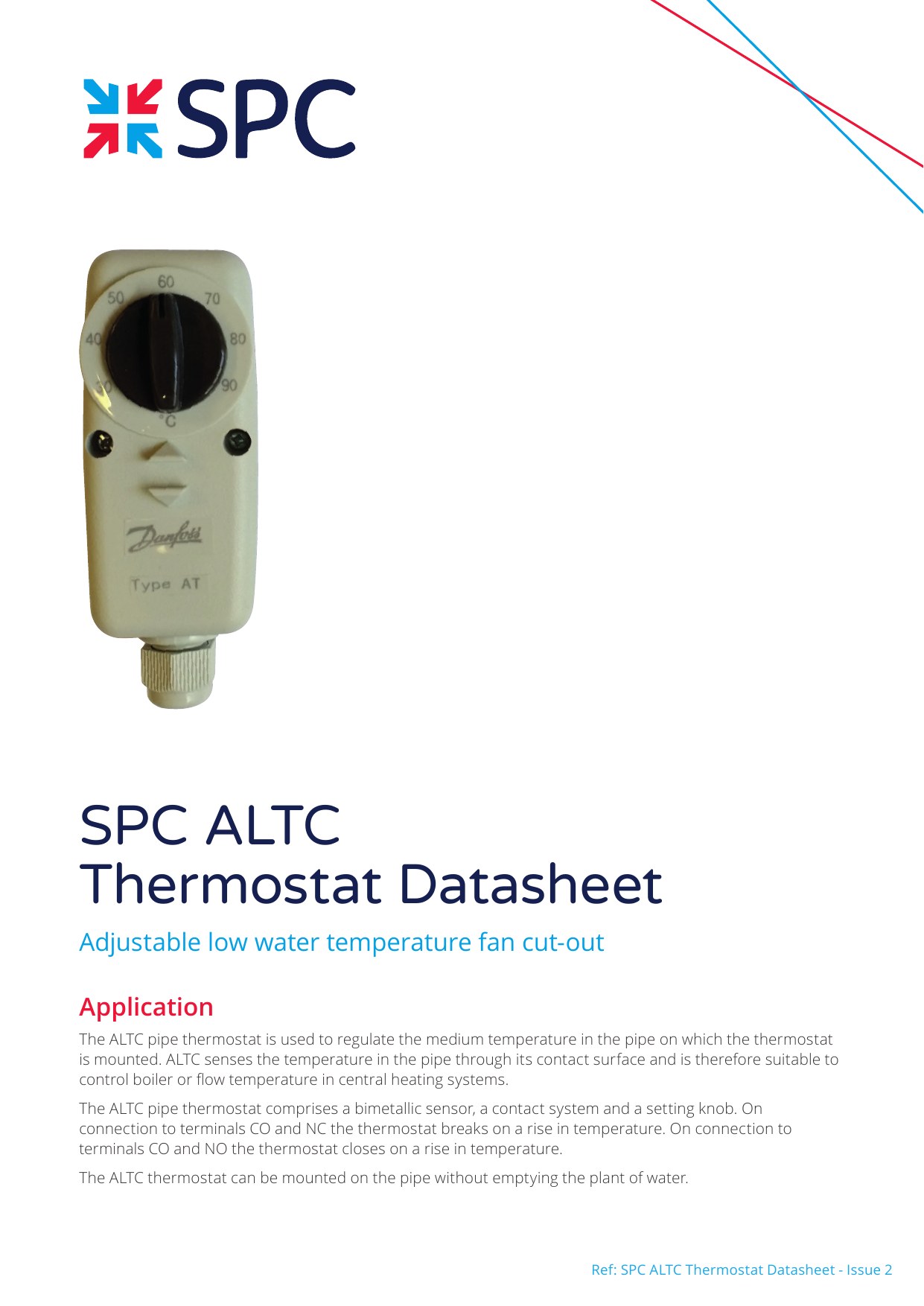

- Low water temperature fan cut-outs (LTC, ALTC) for boiler systems; these are not suitable for weather-compensated heat pump systems
- Electric versions: RT1 on/off thermostat and RS1 or RS2 rocker switches
Belgravia Tilevector Fan Convectors can be built with the accessories a project needs. Check the brochure’s accessories table for the full list.
- Air filter fitted between the fan deck and coil
- Isolating valves for the flow and return pipes (Tilevector Solo and Duo)
- Fuse spur box and customer connection box
- Flush and surface mounting boxes for rocker switches
- SPC Modulo 2-port valve and relay box, with the valve fitted outside the unit

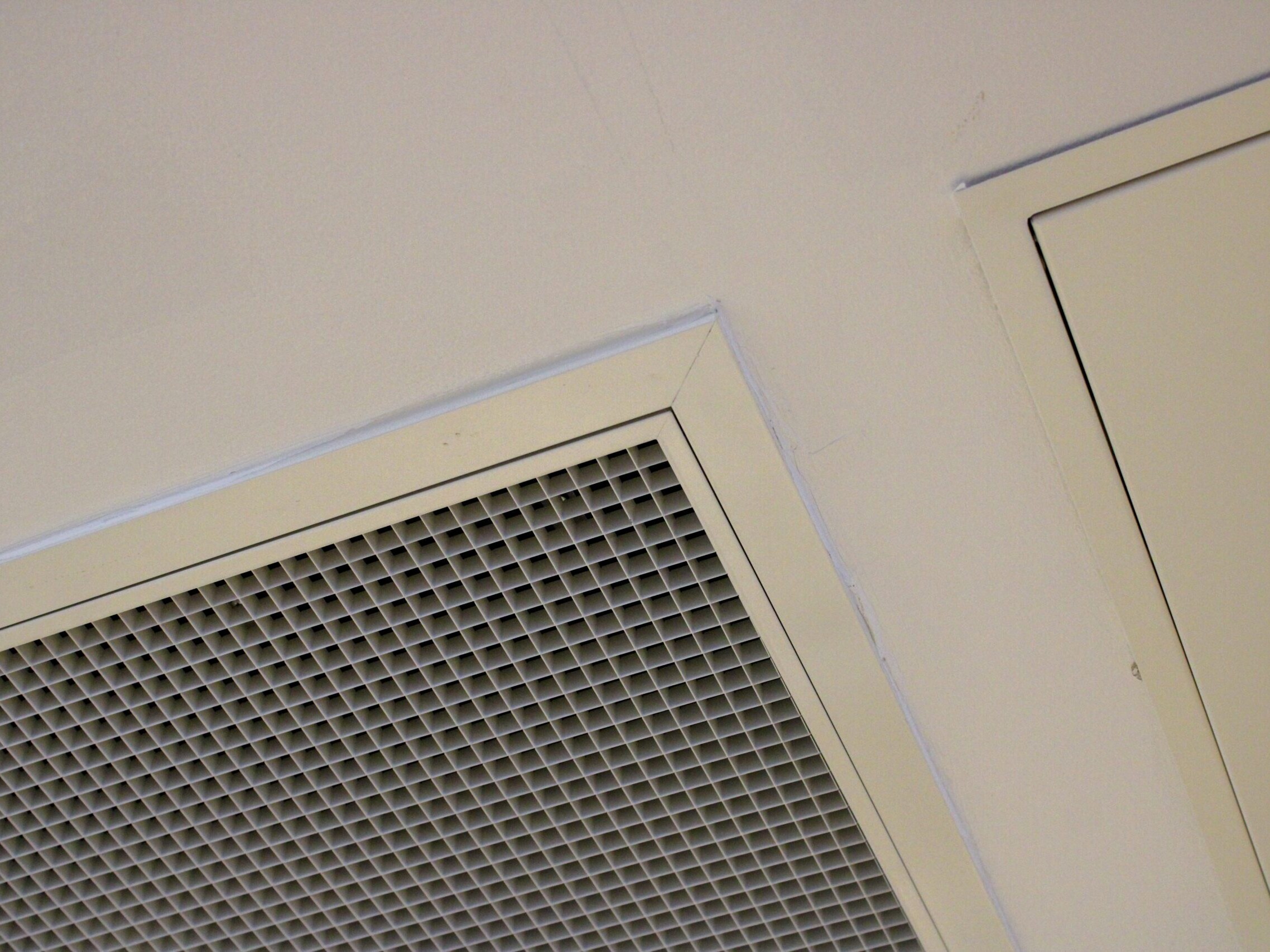

- Black casing with a white (RAL 9010) room-facing grille
Project support from SPC: from survey to commissioning
SPC manufactures and supplies Belgravia Tilevector Fan Convectors for installation by your M&E contractor, and supports the project from the first survey to handover.
Site surveys
We visit site to check mounting positions and the ceiling type in each room.
Selection
We size each unit for your rooms and water temperatures.
Technical support
Our technical team answers coil, control and installation questions.
Area Sales Managers
A local ASM supports you from specification to delivery.
Specifying Belgravia Tilevector Fan Convectors
Free tools to select units and add them to your BIM model.
Select units online
Size and configure Belgravia Tilevector Fan Convectors with our free online configurator, which also covers our other fan convectors, air curtains and unit heaters.
Download BIM objects
Add the Tilevector Solo and Tilevector Duo to your BIM model. Our BIM objects are free to download from SPC on bimstore, alongside the rest of the SPC range.
Belgravia Tilevector Fan Convectors in UK projects

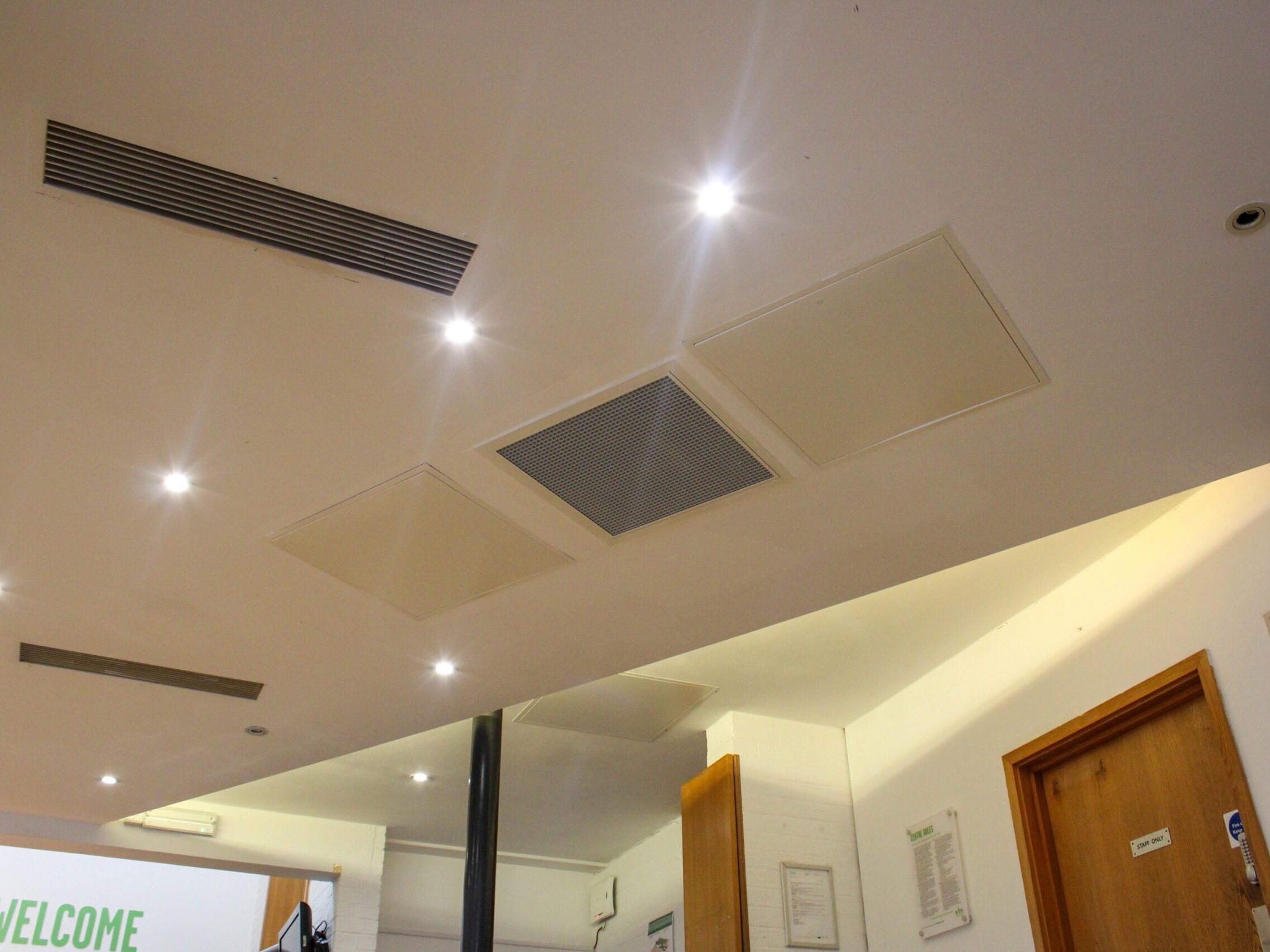

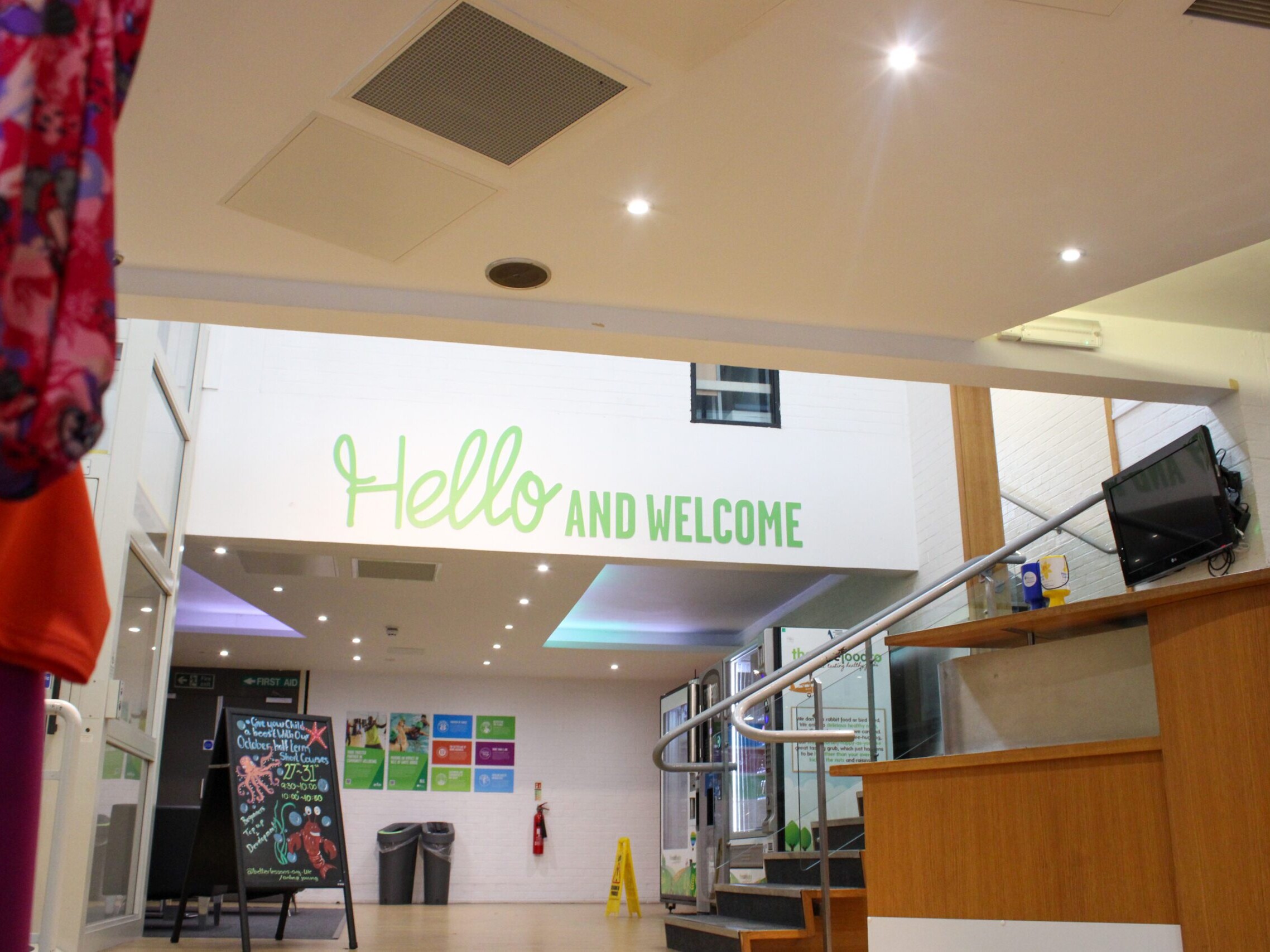

Belgravia Tilevector Fan Convectors are installed in buildings across the UK, including schools, libraries, leisure centres and other public buildings. Recent projects include Mount Hawke Academy in Cornwall, Wantage Leisure Centre in Oxfordshire, Ystradgynlais Library in Swansea and Newport Central Library. See more in our Belgravia Fan Convector projects.
Belgravia Tilevector Fan Convector specification summary
| Feature | Tilevector Solo and Duo | Tilevector Solo Plus and Duo Plus |
|---|---|---|
| Models | Tilevector Solo (one ceiling tile), Tilevector Duo (two ceiling tiles) | Tilevector Solo Plus (one ceiling tile), Tilevector Duo Plus (two ceiling tiles) |
| Suits | Traditional boiler water temperatures | Heat pumps and condensing boilers |
| Unit size | 595 x 595 mm (Solo); 1195 x 595 mm (Duo) | 595 x 595 mm (Solo Plus); 1195 x 595 mm (Duo Plus) |
| Depth | 210 mm | 260 mm |
| Weights | 18 kg (Solo); 35 kg (Duo) | 20 kg (Solo Plus); 35 kg (Duo Plus) |
| Heating output | 3.1 to 3.7 kW (Solo, low to high speed); 7.0 to 8.0 kW (Duo, low to medium speed); 80/70°C water, 18°C air | 2.7 to 3.5 kW (Solo Plus, low to high speed); 5.8 to 7.1 kW (Duo Plus, low to medium speed); 50/40°C water, 18°C air |
| Published water temperatures | 80/70°C | 50/40, 50/35 and 45/35°C |
| Electric versions | Solo 3 kW (230 V single phase); Duo 6 kW (400 V three phase); single fan speed | Not applicable |
| Noise | NR36 to NR42 (Solo, low to high speed); NR38 to NR42 (Duo, low to medium speed) | NR34 to NR40 (Solo Plus, low to high speed); NR36 to NR40 (Duo Plus, low to medium speed) |
| Isolating valves | Available | Not available |
| Ceiling types | T-bar suspended ceiling grids, plasterboard ceilings, or free-hanging below a solid ceiling | T-bar suspended ceiling grids, plasterboard ceilings, or free-hanging below a solid ceiling |
| Mounting height | Minimum 1.8 m; recommended maximum 3 m | Minimum 1.8 m; recommended maximum 3 m |
| Heat exchanger | Copper tubes and aluminium fins, 15 mm connections | Copper tubes and aluminium fins, 15 mm copper connections |
| Fans and supply | EC motors, three speeds; 230 V / 1 ph / 50 Hz | EC motors, three speeds; 230 V / 1 ph / 50 Hz |
| Finish | Black casing; white (RAL 9010) hinged aluminium eggcrate grille | Black casing; white (RAL 9010) hinged aluminium eggcrate grille |
| Controls | Remote thermostats, switches, SPC Modulo, SPC Vision, BMS enable and 0-10V speed control | Remote thermostats, switches, SPC Modulo, SPC Vision, BMS enable and 0-10V speed control |
| Manufactured | Leicester, UK, by S & P Coil Products Limited (ISO 9001:2015) | Leicester, UK, by S & P Coil Products Limited (ISO 9001:2015) |
Discuss your ceiling heating project
Planning heating for a school, office, library, leisure centre or other commercial or public building with a suspended ceiling? Tell us about your project and we will help you choose the right Belgravia Tilevector Fan Convectors. Call 0116 249 0044 or email spc@spc-hvac.co.uk.
Frequently Asked Questions
Yes, in practice. LTHW (low temperature hot water) and LPHW (low pressure hot water) are both used in the UK to describe the hot water heating circuits that fan convectors run on. Belgravia Tilevector Fan Convectors run on these systems: the Tilevector Solo and Duo suit traditional boiler water temperatures, and the Tilevector Solo Plus and Duo Plus suit the lower water temperatures from heat pumps and condensing boilers.
Choose by ceiling space and water temperature. Solo models take the space of one 600 x 600 mm ceiling tile and Duo models take two. The Tilevector Solo and Duo (210 mm deep) suit traditional boiler water temperatures such as 80/70°C. The Tilevector Solo Plus and Duo Plus (260 mm deep) suit the lower water temperatures from heat pumps and condensing boilers. Our team can select the model and number of units for each room.
With a Tilevector Solo Plus or Tilevector Duo Plus on a weather-compensated heat pump system, choose a remote thermostat, SPC Modulo or BMS control. Low water temperature fan cut-outs (LTC and ALTC) are for boiler systems and are not suitable for weather-compensated heat pump systems.
A ceiling-mounted unit suits rooms with a suspended or plasterboard ceiling where the walls are needed for windows, doors, storage, whiteboards or displays. Classrooms, offices, meeting rooms, libraries and reception areas are common examples. For floor or wall mounting, see Belgravia Classic Fan Convectors and Belgravia Supreme Fan Convectors.
The unit is hung from the load-bearing soffit by rod or wire through the four holes in its top flanges, never resting on the ceiling grid alone. The grille sits inside the T-bars and the unit height is adjusted to suit. Flow and return connections are shown in the IOM for each model. Full instructions are in the Tilevector and Tilevector Plus IOMs in the downloads below.
Isolate the power, then open the hinged grille for access. Clean the air filter regularly to keep the airflow and output up, and clean the coil with a brush or vacuum cleaner from time to time. For Tilevector Plus units, we recommend vacuuming the inside at least every three months, depending on how dusty the room is.
Yes. Two BMS options are available. BMS1 is a relay for a remote enable/disable signal, and BMS2 gives on/off and fan speed control from a 0-10V signal. Units can also be controlled by remote thermostats, switches or the SPC Modulo and SPC Vision controllers.
BIM objects for the Tilevector Solo and Tilevector Duo are available from SPC on bimstore. For the Tilevector Solo Plus and Duo Plus, which share the same face size but are 260 mm deep, use the dimensions in the Tilevector Plus IOM in the downloads below, or ask our team.
