The Challenge

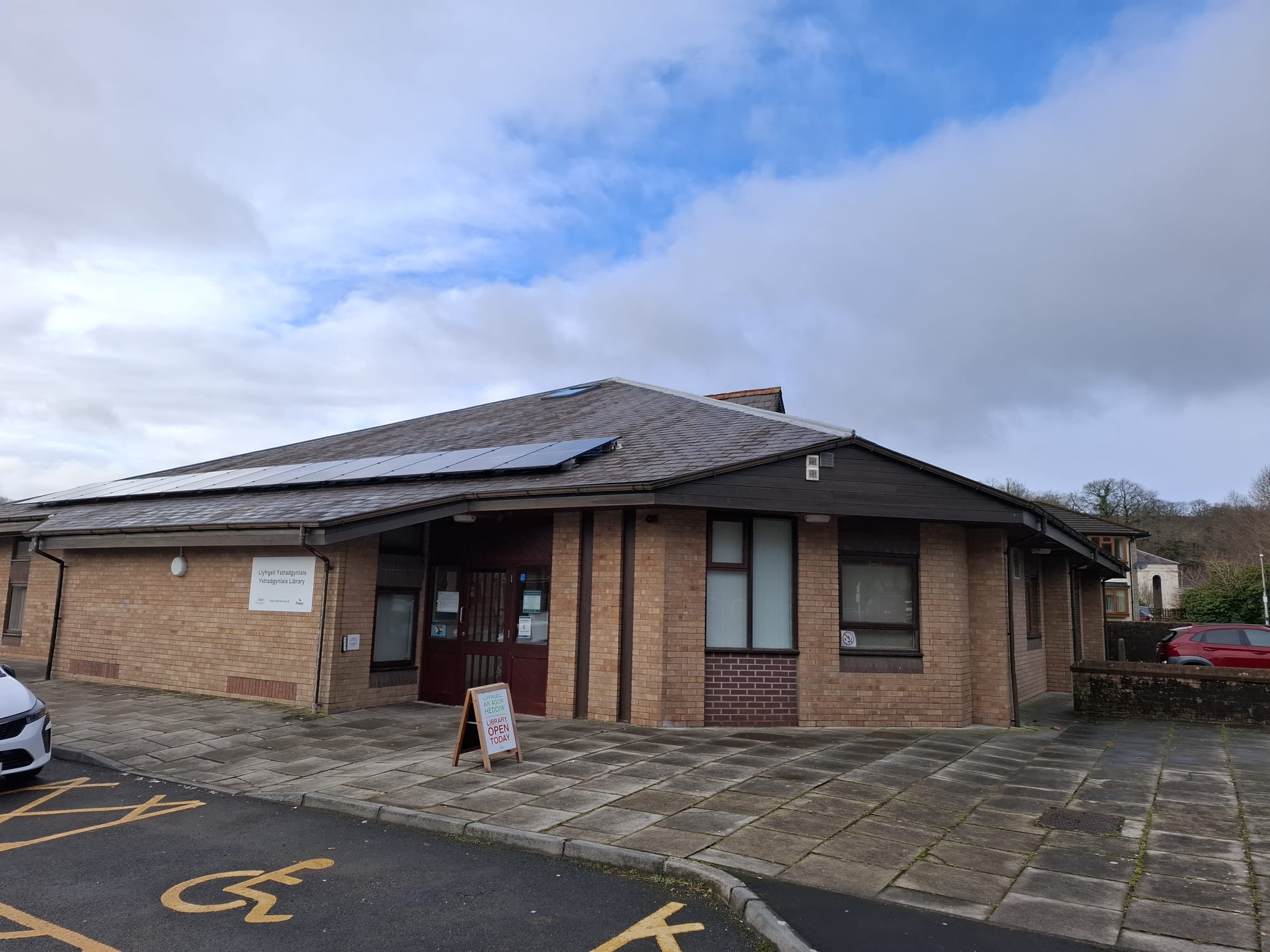

When the existing hot air heating system at Ystradgynlais Library in Swansea failed, the building required a reliable replacement heating solution. CF Roberts (Electrical Contractors) Ltd approached SPC seeking heating options, with the initial enquiry mentioning Fan Convectors or ceiling grid-mounted coils as potential solutions. SPC’s Area Sales Manager, Chris Ward, conducted a site survey to assess the requirements and identify the most suitable heating approach for the space.
During the survey, Chris identified that the library featured T-bar suspended ceiling grids throughout the main library space, making it an ideal application for SPC’s Tilevector range, which integrates seamlessly into standard 600mm ceiling tiles without requiring additional structural modifications.
SPC's Solution
SPC specified a zone-specific heating solution tailored to the library’s layout and operational requirements. The system was designed around standard water temperatures (80/60°C) to integrate with the existing boiler plant, with all units configured for building management system (BMS) integration to enable centralised control.
Key Specifications:

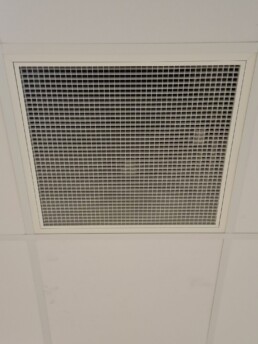

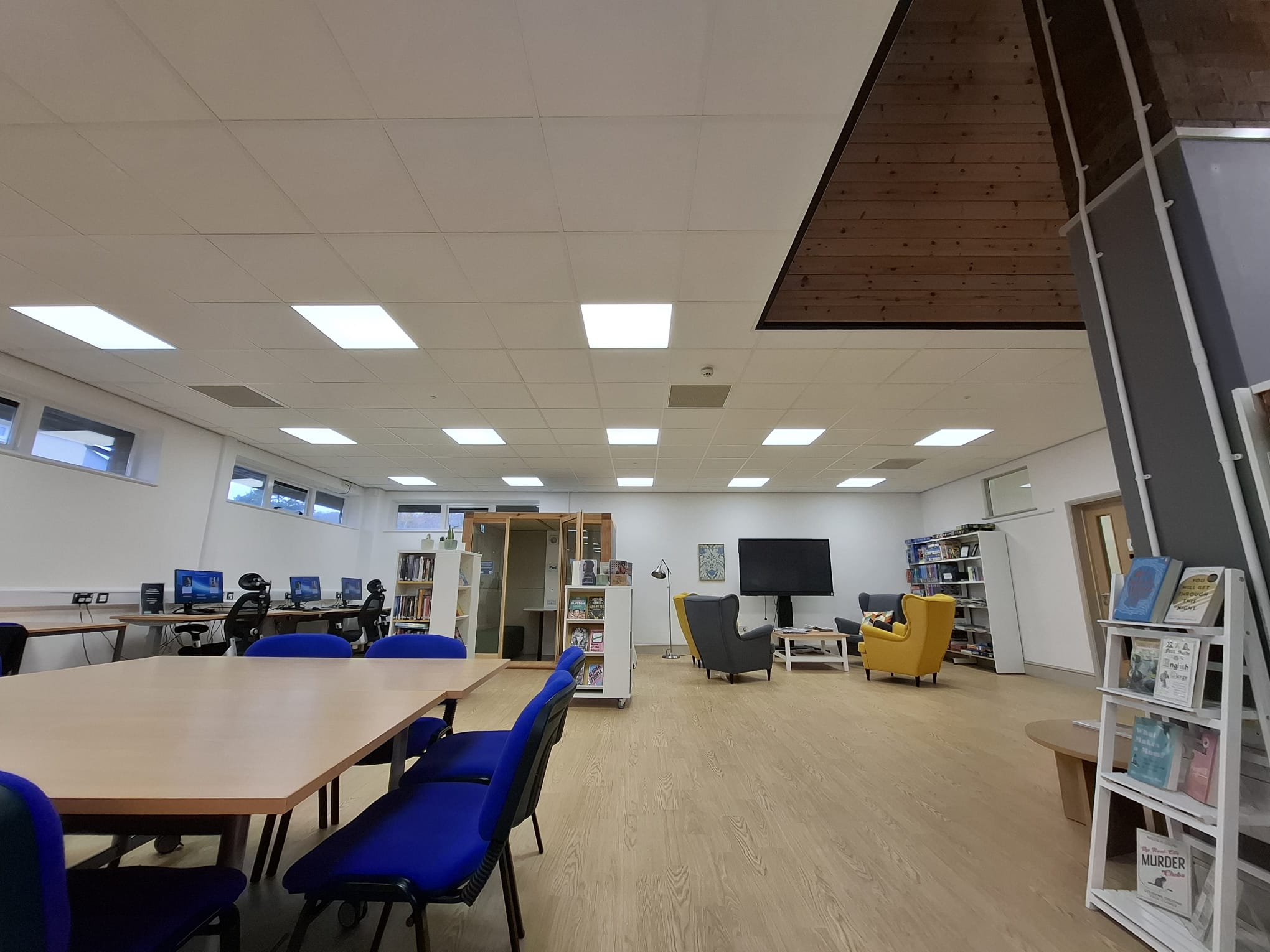

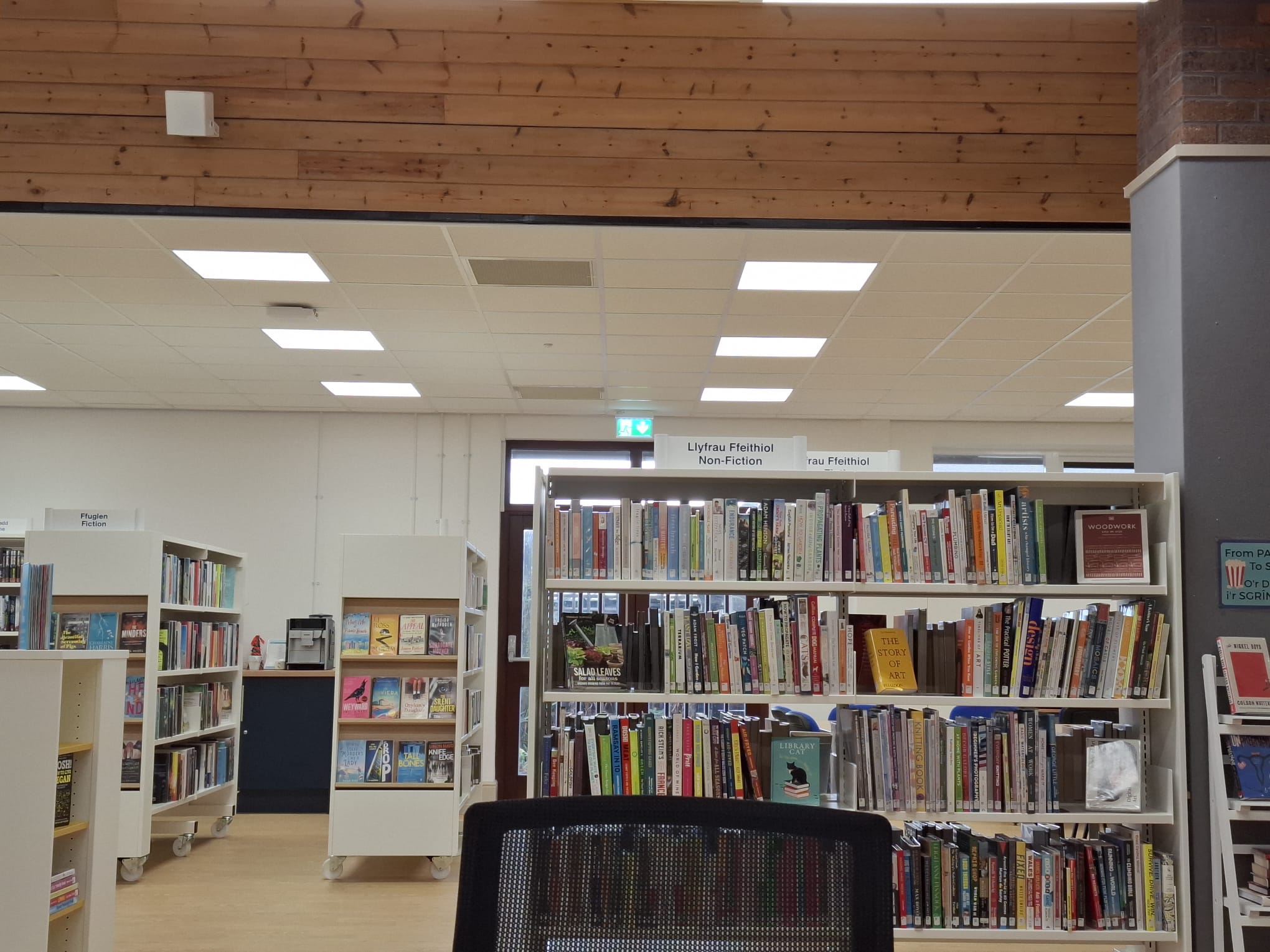

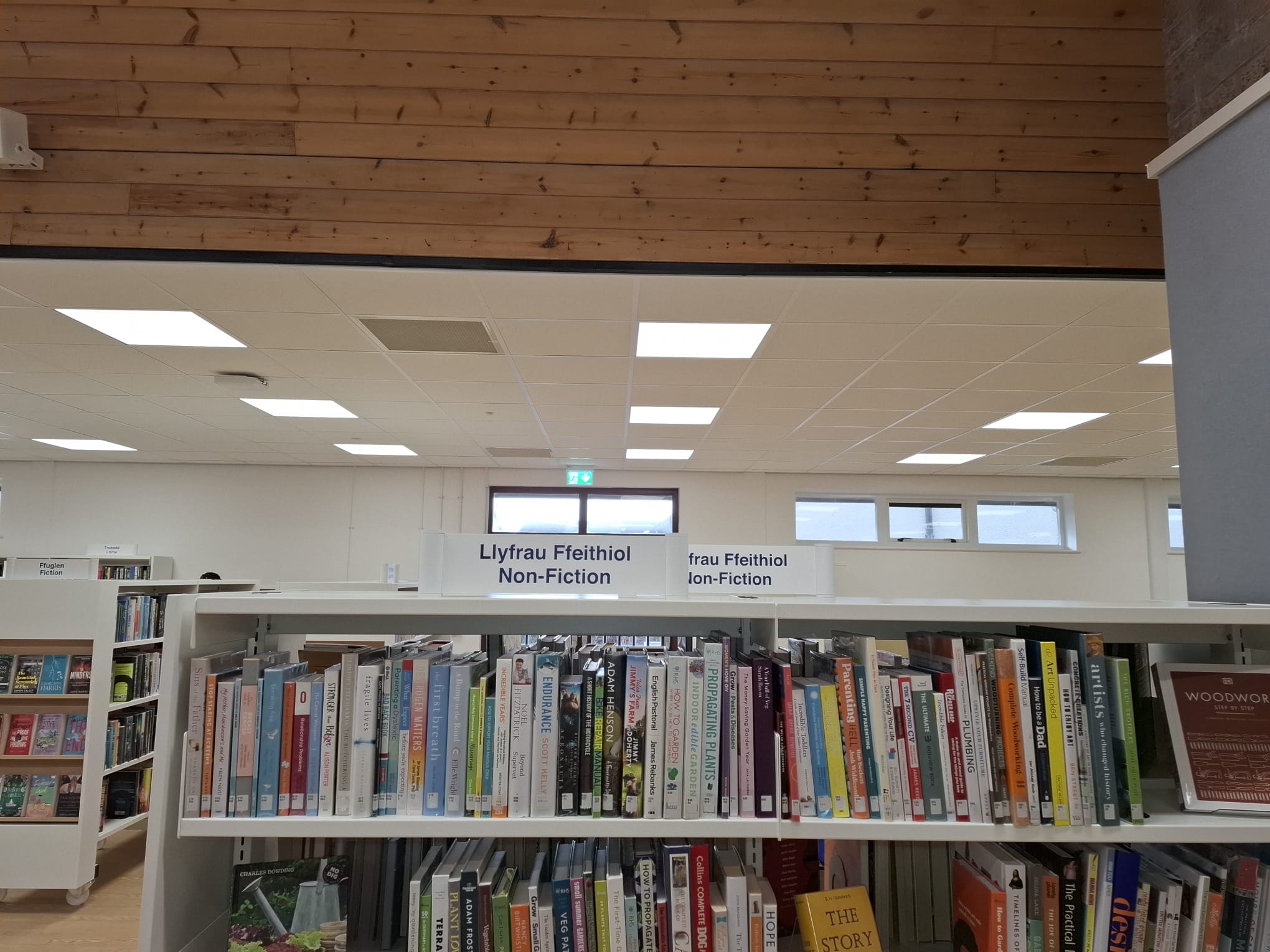

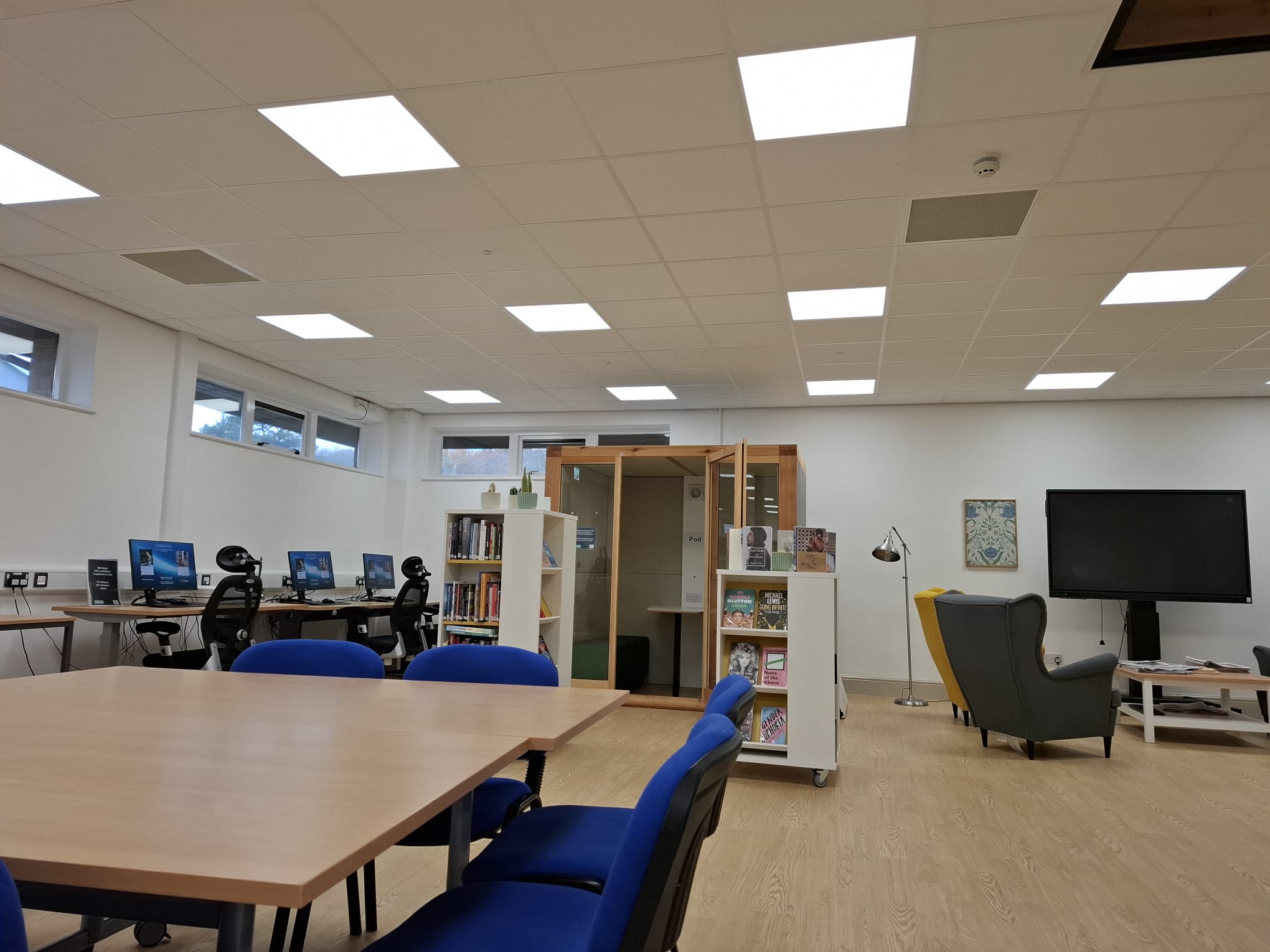

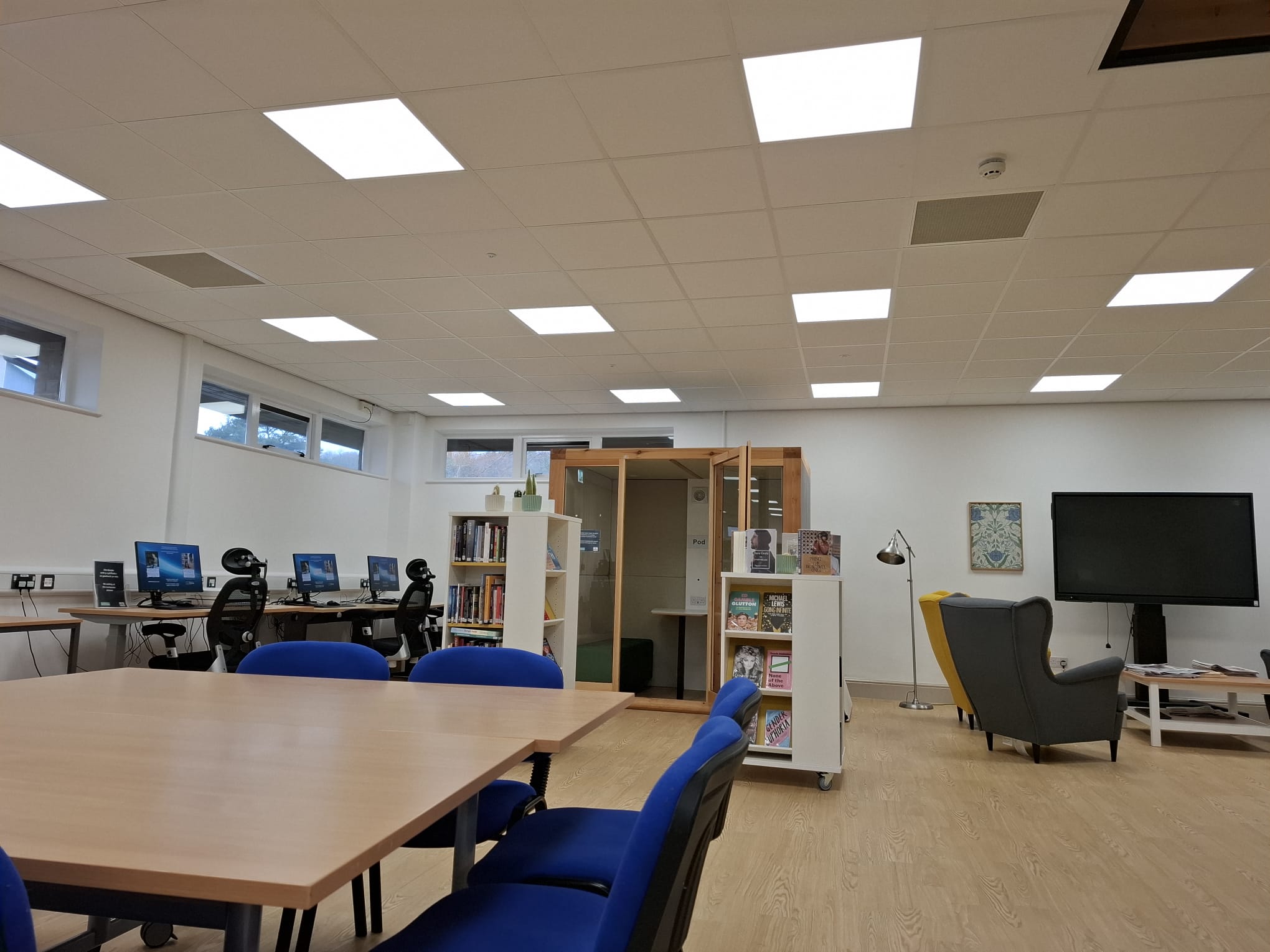

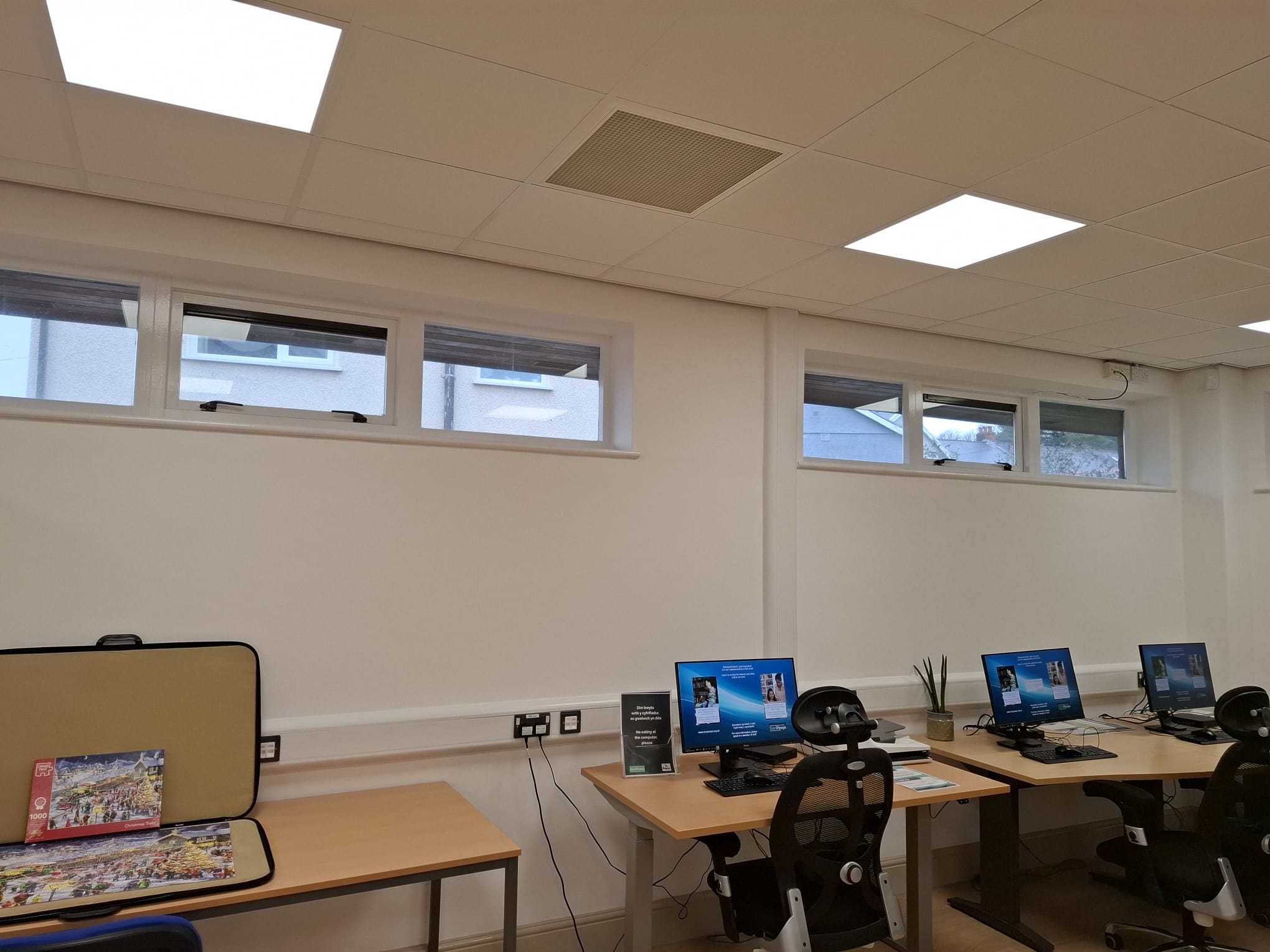

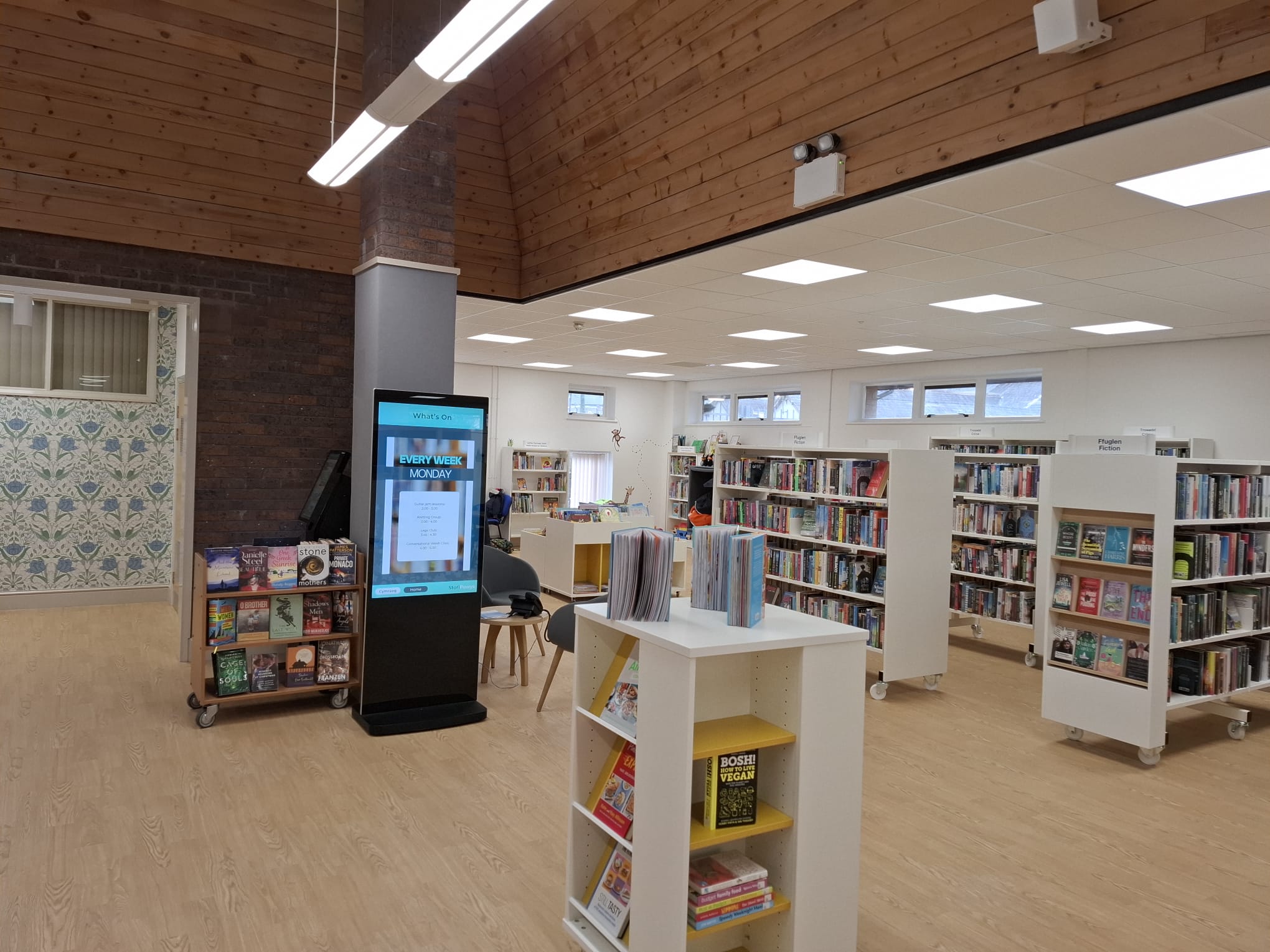

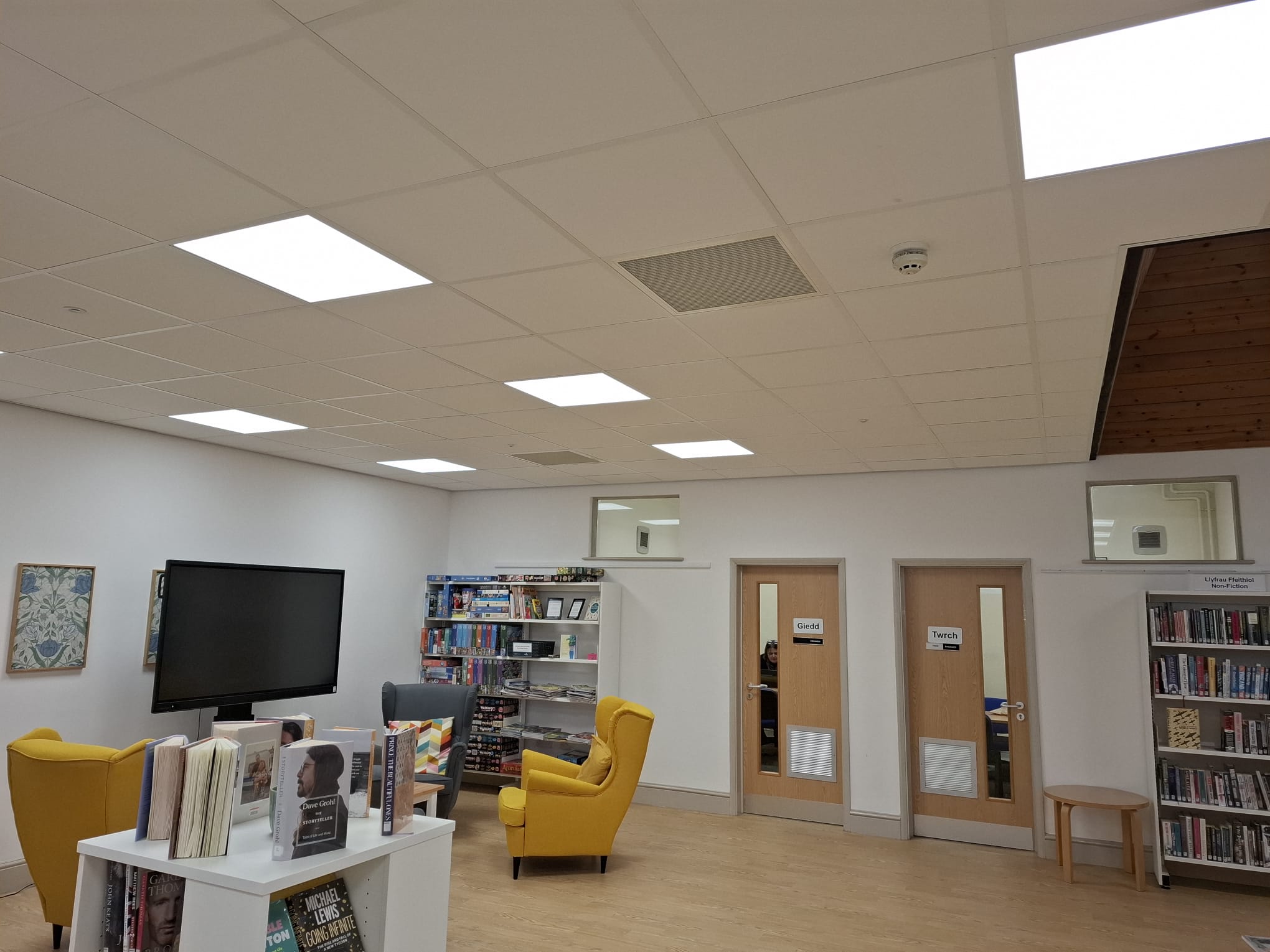

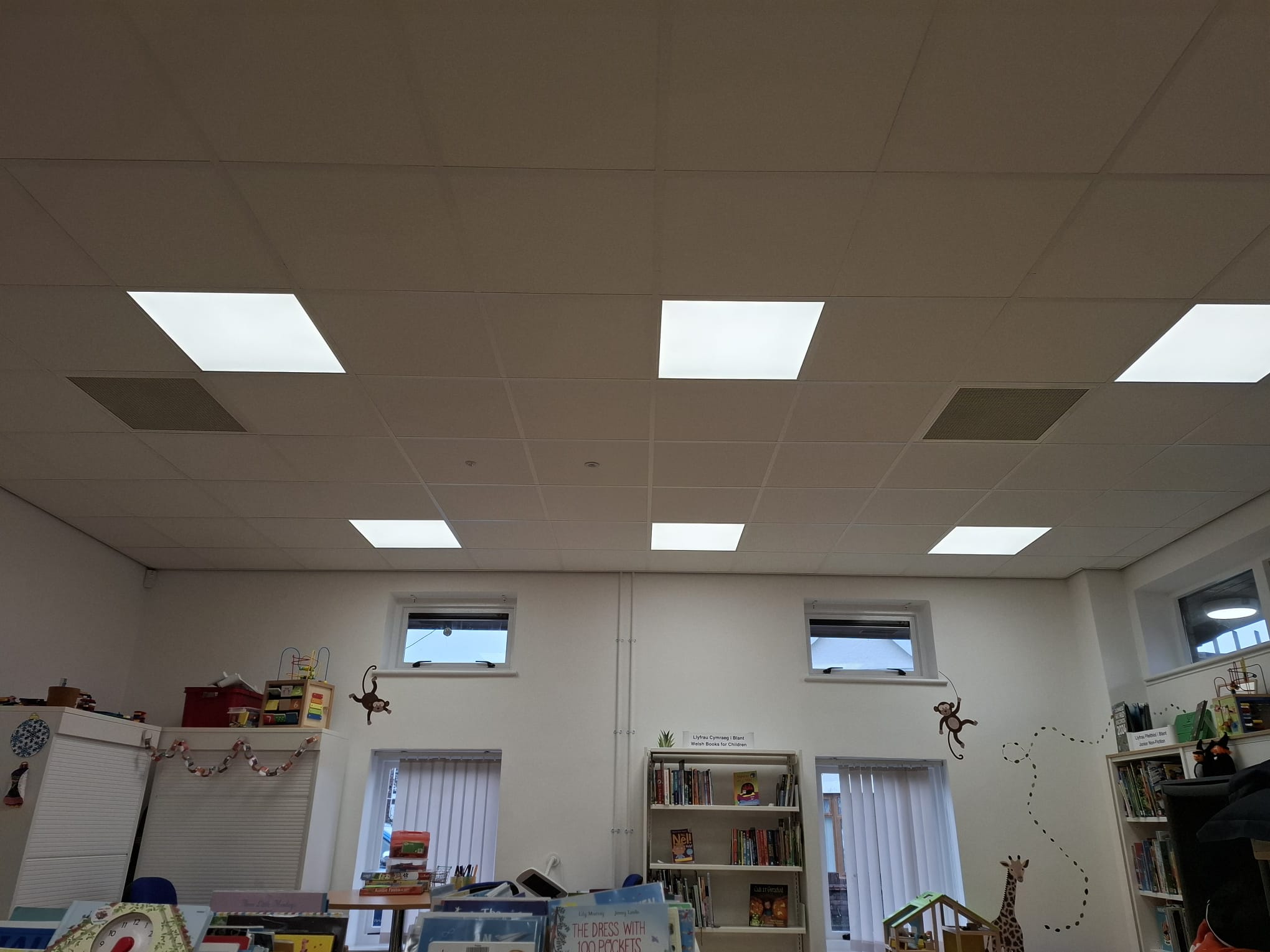

Main Library – Belgravia Tilevector Solo Units (x7)
- Ceiling-mounted Solo units fitted into false ceiling grid with hinged-core grille
- Configuration: 1 master unit controlling 6 slave units
- Heating output: 2.2–2.6 kW per unit

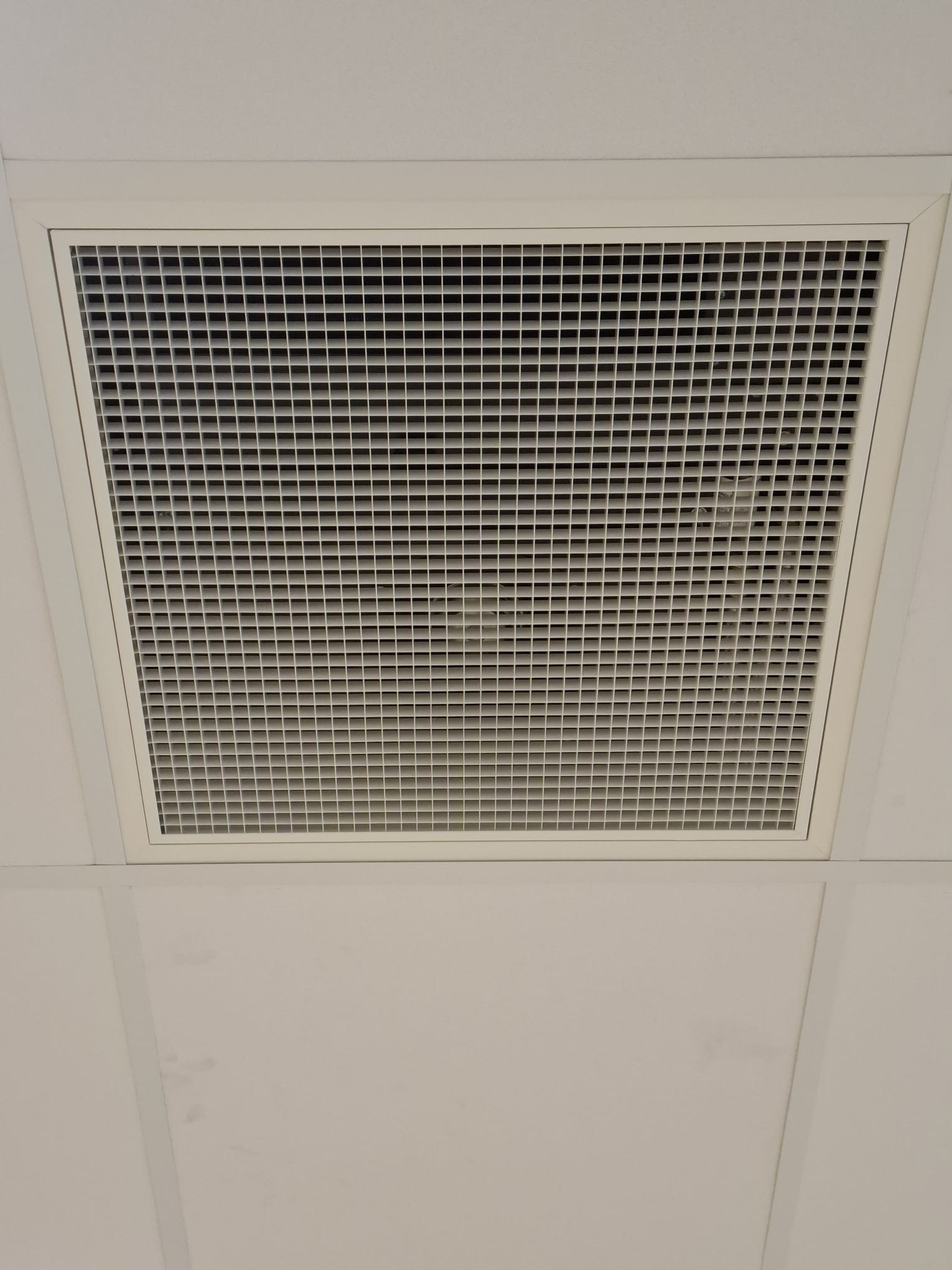

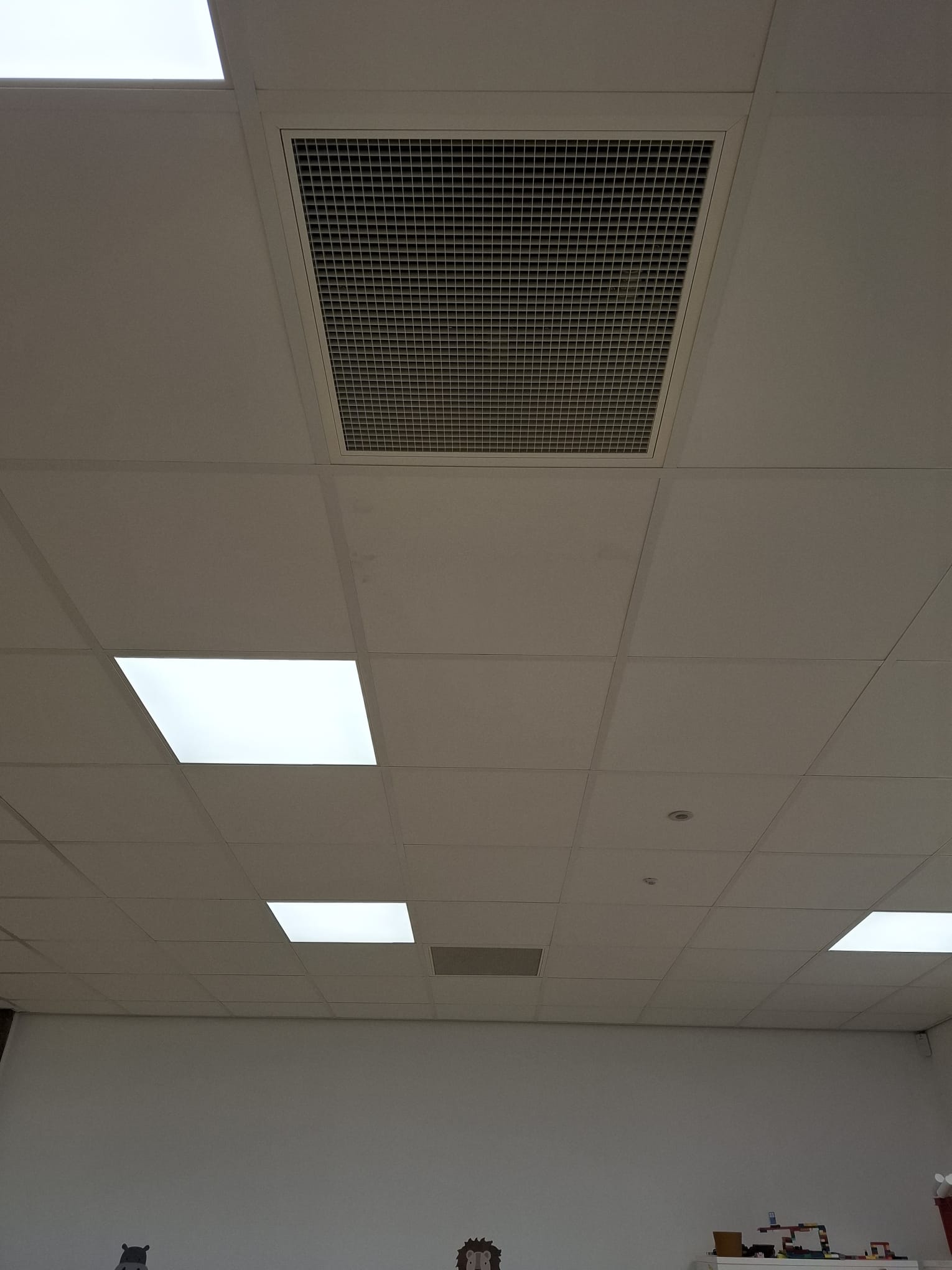

- White eggcrate grille (EC) for discreet ceiling integration

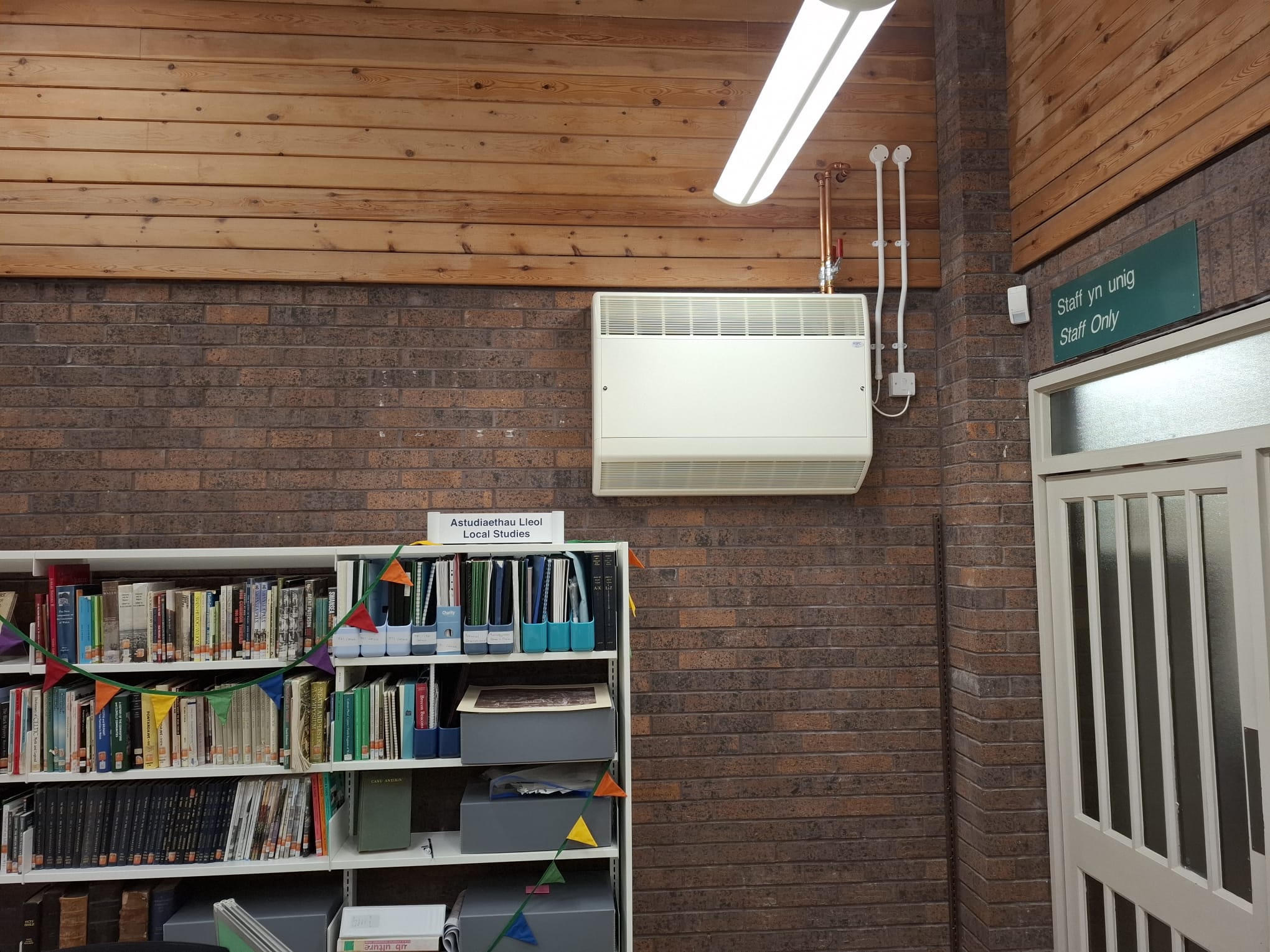

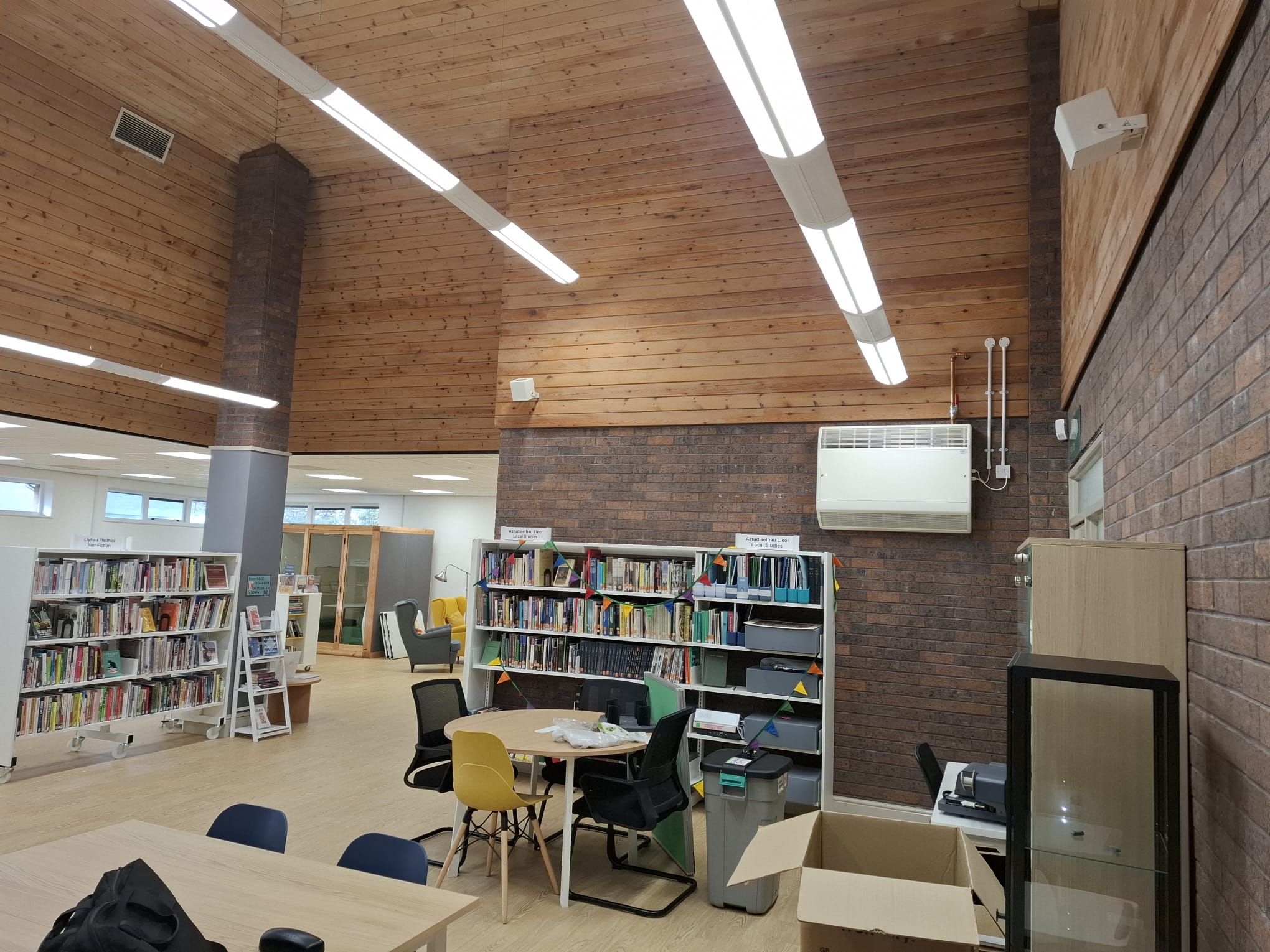

Pine Room – Belgravia Supreme SPR60 Fan Convector (x1)
- High-wall mounted BS unit with inverted case and reversed airflow (INVCS-RAF)
- Heating output: 3.6–6.6 kW
- AF3 air filter, tamperproof fasteners, textured white finish (RAL 9010)

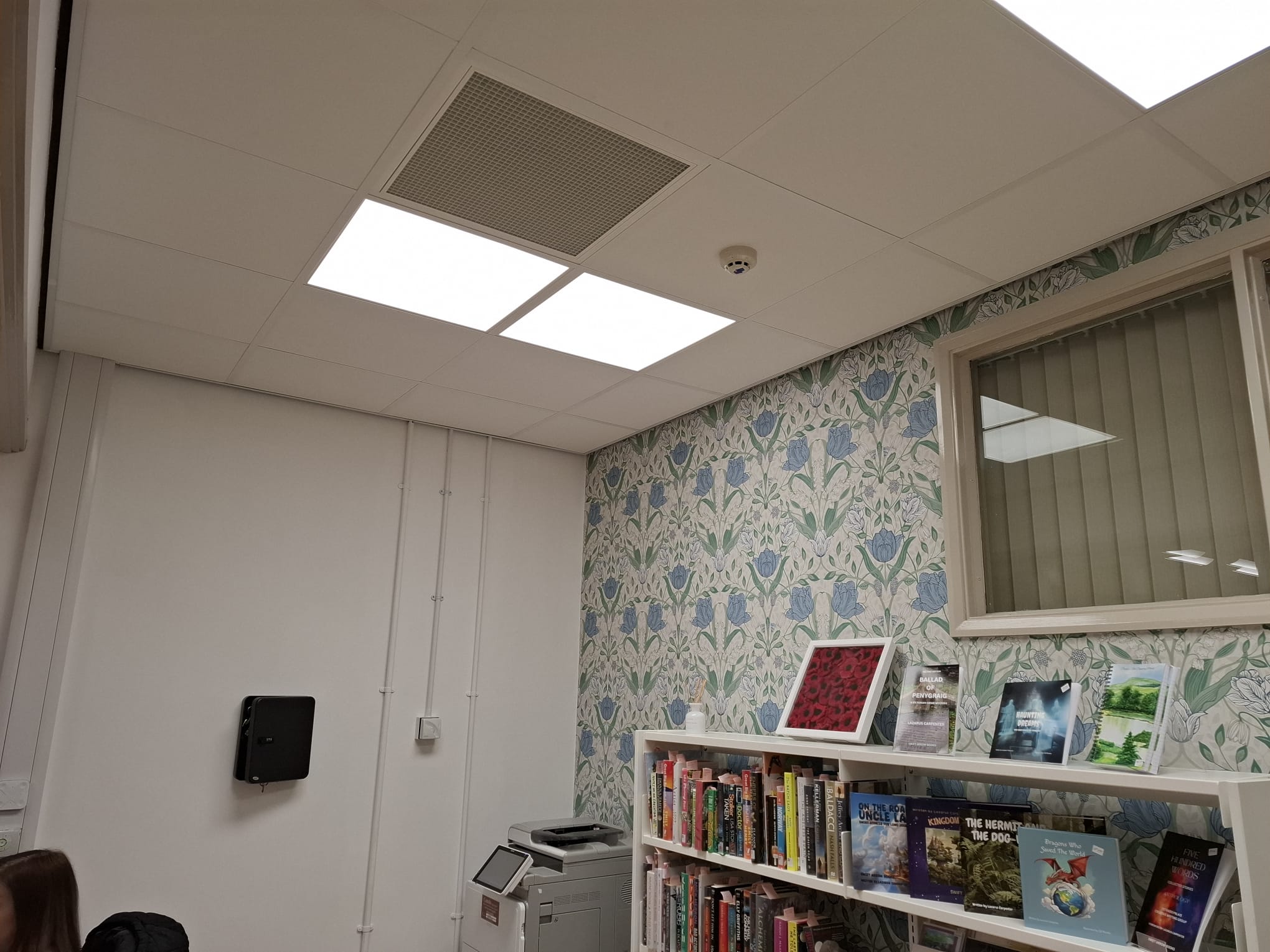

Reception – Belgravia Tilevector Solo Unit (x1)
- Standalone ceiling-mounted unit with independent controls
- Heating output: 2.2–2.6 kW
Outcome
The installation by CF Roberts provided Ystradgynlais Library with a modern, energy-efficient heating system that replaced the failed hot air system. The Tilevector units offered a discreet heating solution that integrated seamlessly into the existing ceiling infrastructure, while the Supreme Fan Convector delivered higher output for the Pine Room area.
The project demonstrates how a thorough site survey and product knowledge can identify the optimal heating solution for a space. By recognising the opportunity to utilise the existing T-bar ceiling grid, SPC was able to recommend Tilevector units that minimised installation complexity while providing effective, controllable heating across multiple library zones.
