Newport Central Library required modern, energy-efficient heating equipment for its third-floor spaces as part of an internal refurbishment project. SPC worked with Newport Norse Ltd to supply a tailored heating package featuring Belgravia Supreme Fan Convectors and Tilevector Solo units, delivering reliable comfort across the library’s public areas and back office.
Newport Norse Ltd, the facilities management provider for Newport City Council, managed the project with heating equipment specified to provide efficient, controllable heating across multiple zones within the library building.
SPC's Solution
Following an initial site meeting, SPC’s South West Area Sales Manager, Chris Ward, worked with Gary Moore at Newport Norse to specify Fan Convectors suited to the library’s layout and operational requirements. The solution combined wall-mounted and ceiling-mounted units, all featuring energy-saving ECM motors and the Modulo controller for precise temperature management.

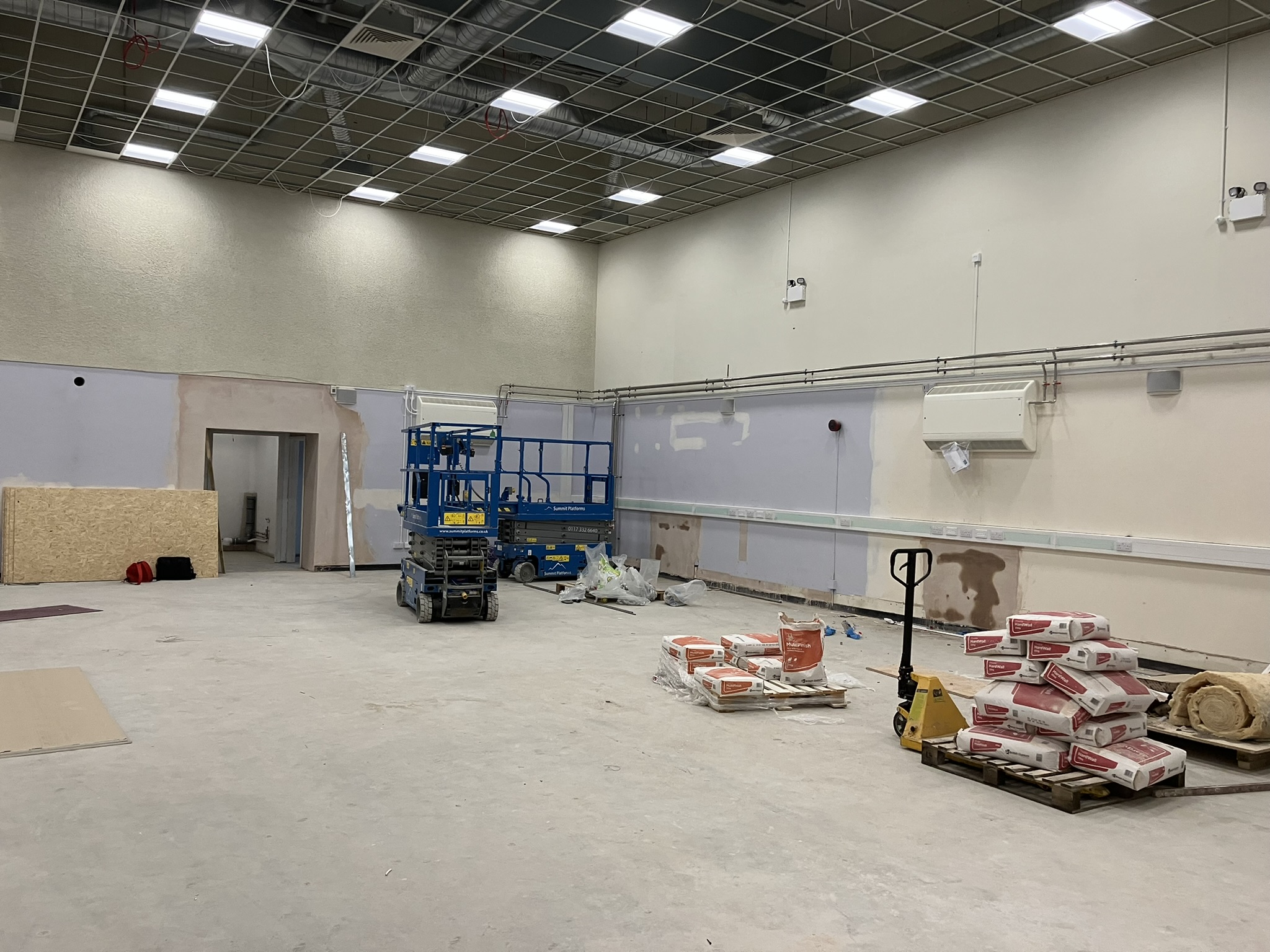

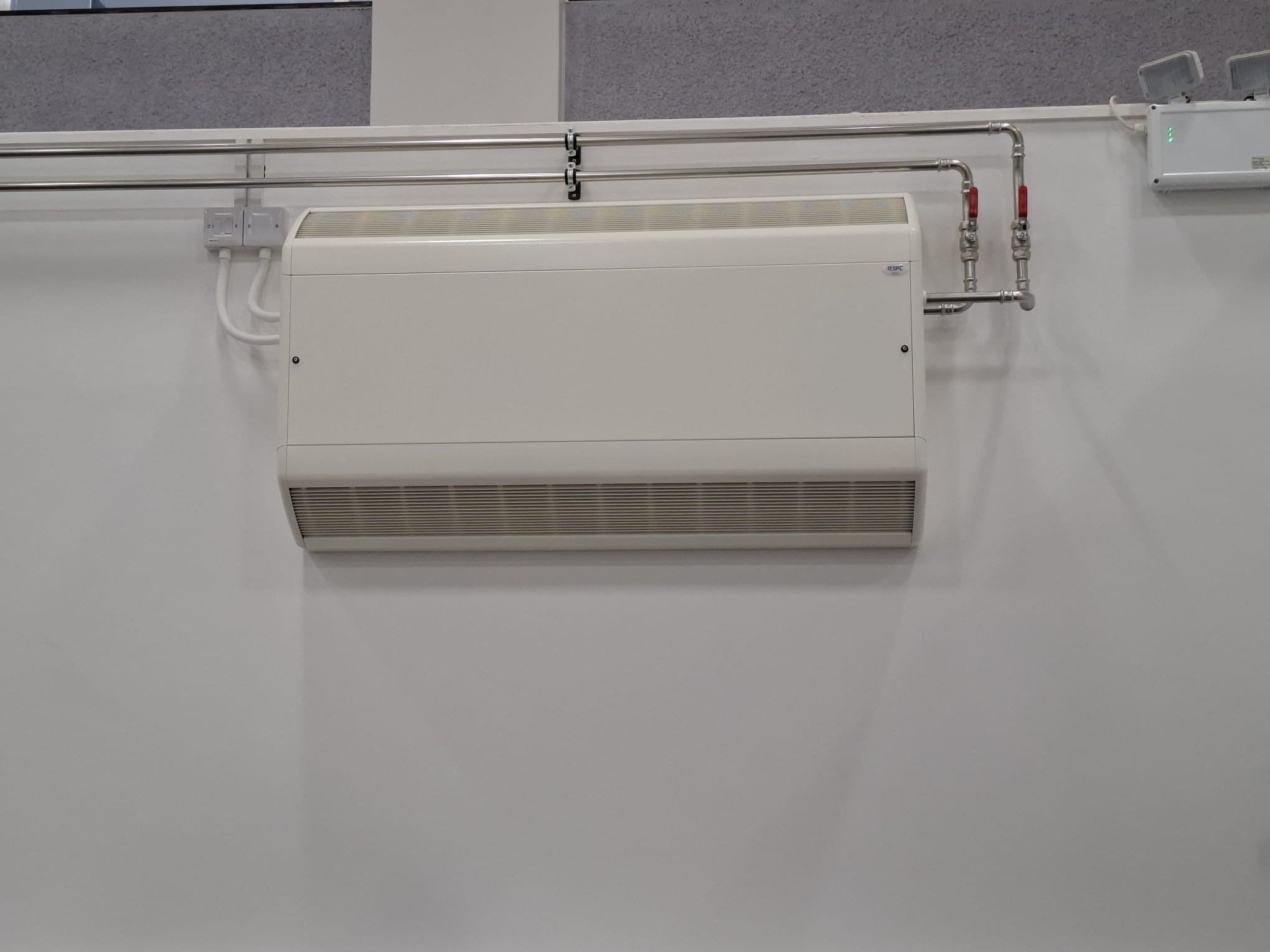

The specification was refined during the project development, with two Tilevector Solo units added to serve the back office area. Chris Ward attended the site during installation to support the contractor and document the wall-mounted fan convectors being fitted.
Key Specifications:

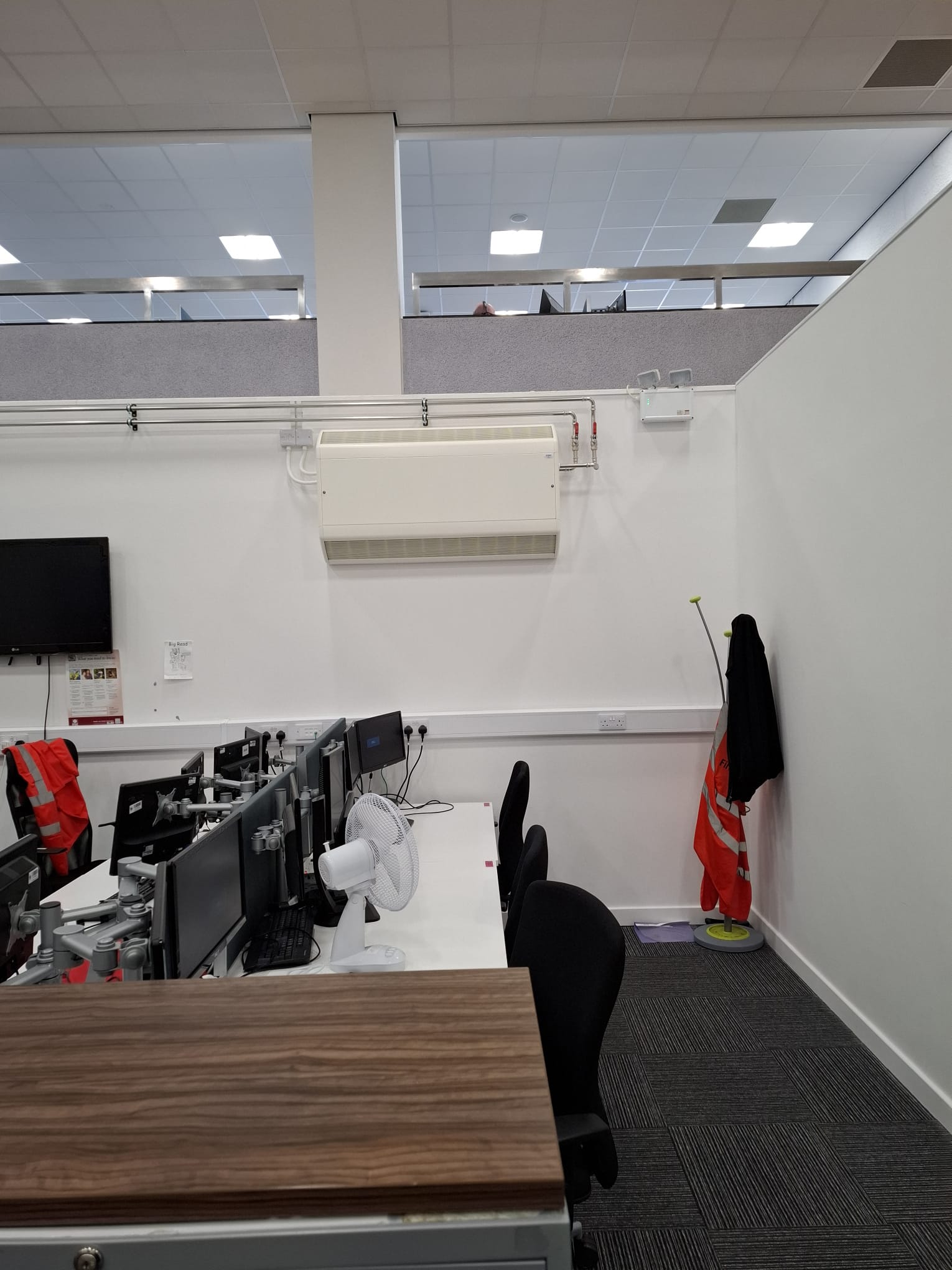

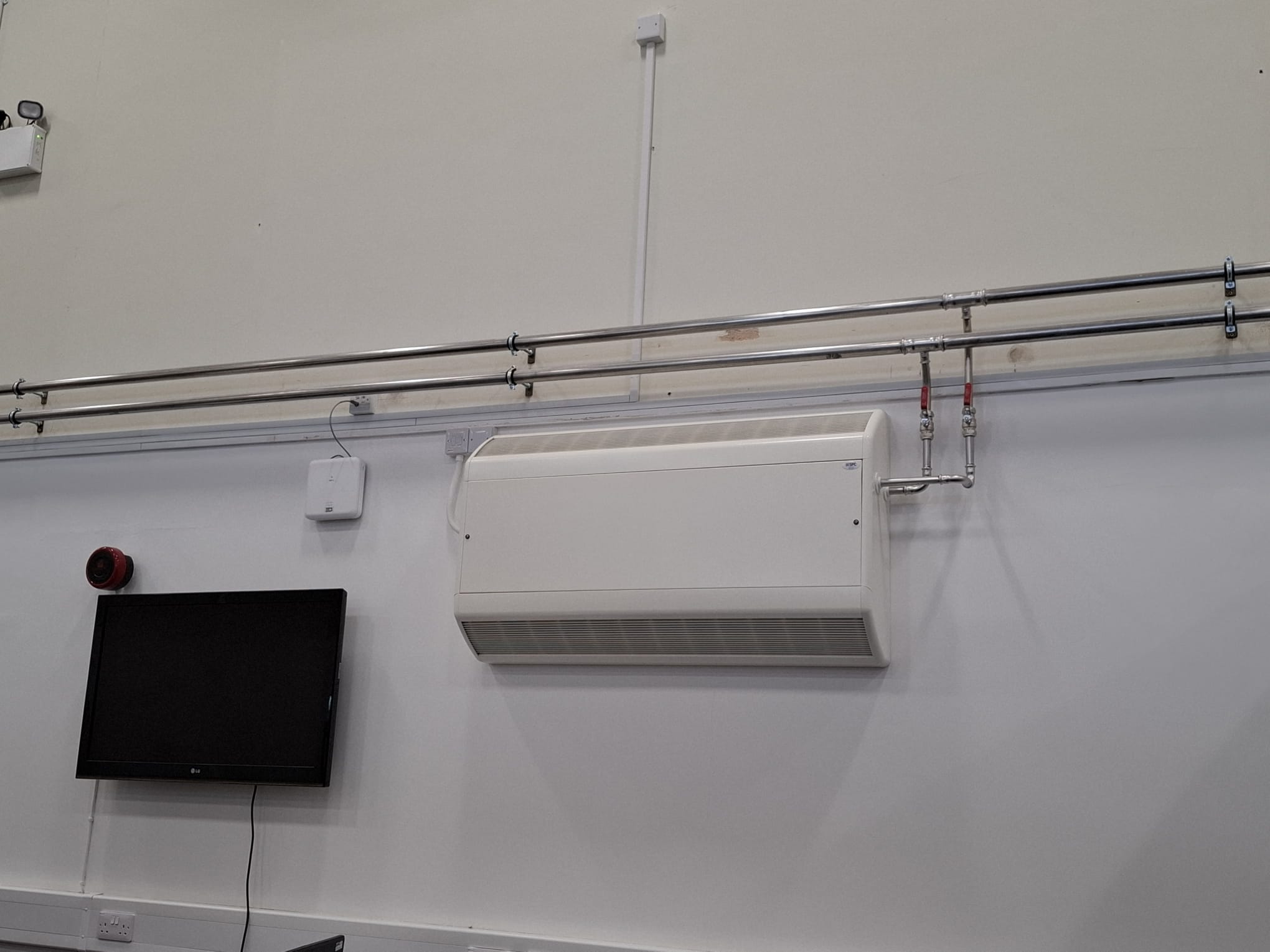

Library Third Floor – Main Spaces — Belgravia Supreme Fan Convectors (x5)
- Model: SPR75/90HS wall-mounted units
- Configuration: 1 master unit controlling 4 slave units
- Case style: Vertical exposed model with sloping top inlet and reversed airflow (RAF)
- Heat exchanger: Designed for 80/70°C water temperatures
- Controls: Modulo thermostat controller (master unit), with proportional speed control
- Motor: High-performance ECM (electronically commutated motor)
- Additional features:
- AF3 washable air filter
- LTC low-water temperature cut-out
- TAP tamperproof access fasteners
- Heating duty:1–11.5 kW per unit (across three speed settings)
- Finish: Textured white RAL 9010
- Design basis: Air on 15°C, Water 80/70°C, 230V single phase

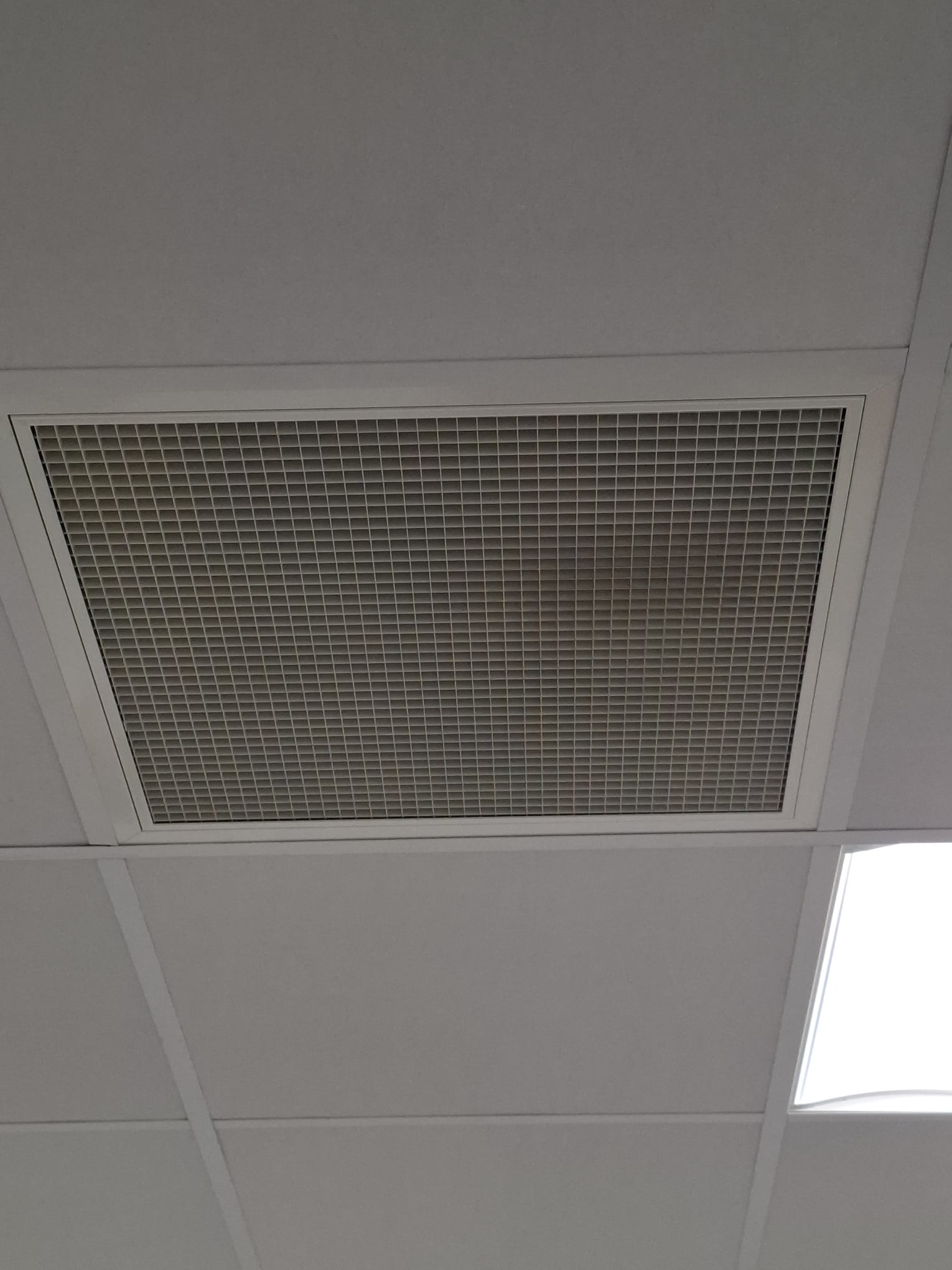

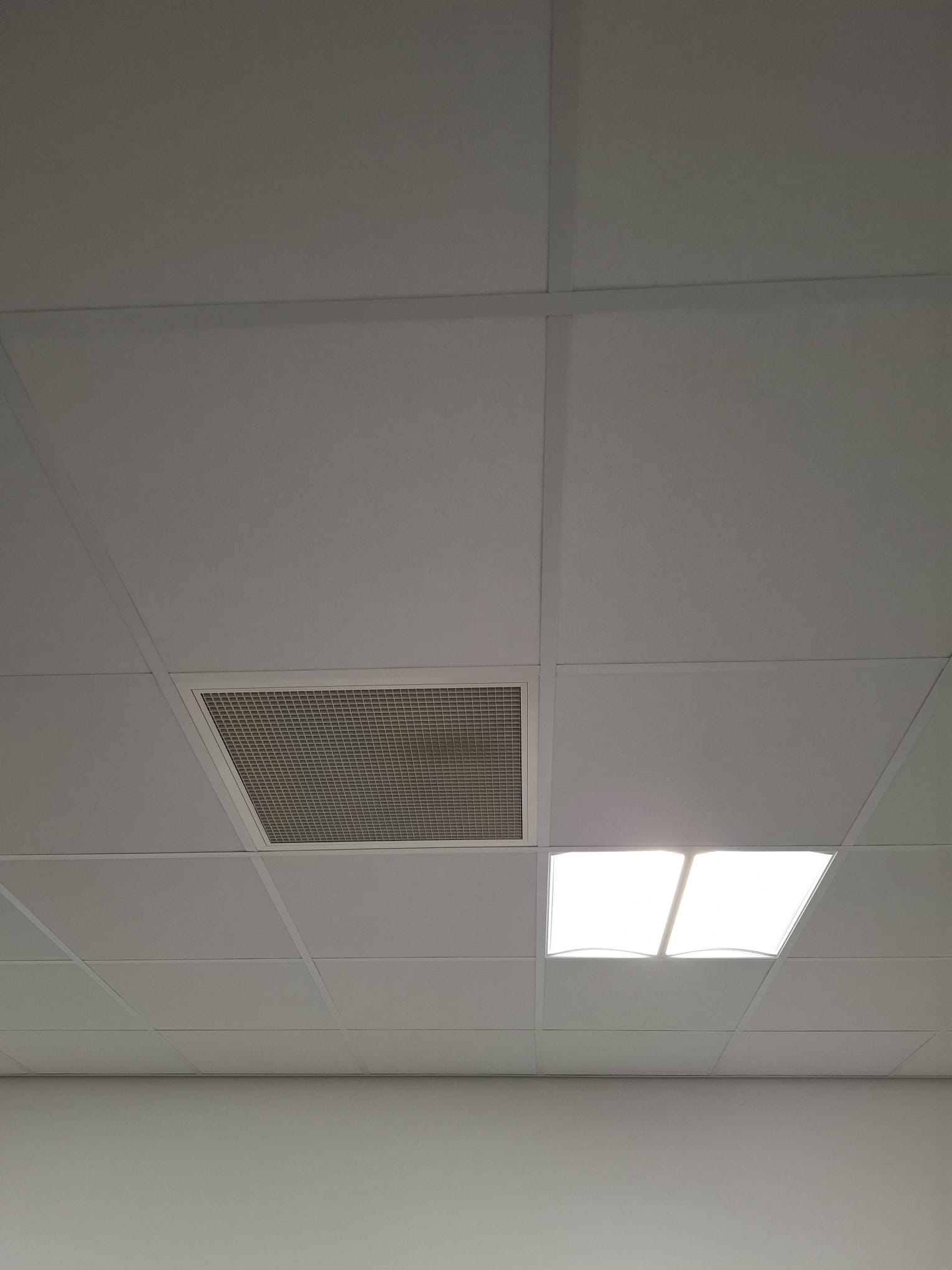

Back Office Area — Belgravia Tilevector Solo Units (x2)
- Model: Tilevector Solo units
- Configuration: 1 master unit controlling 1 slave unit

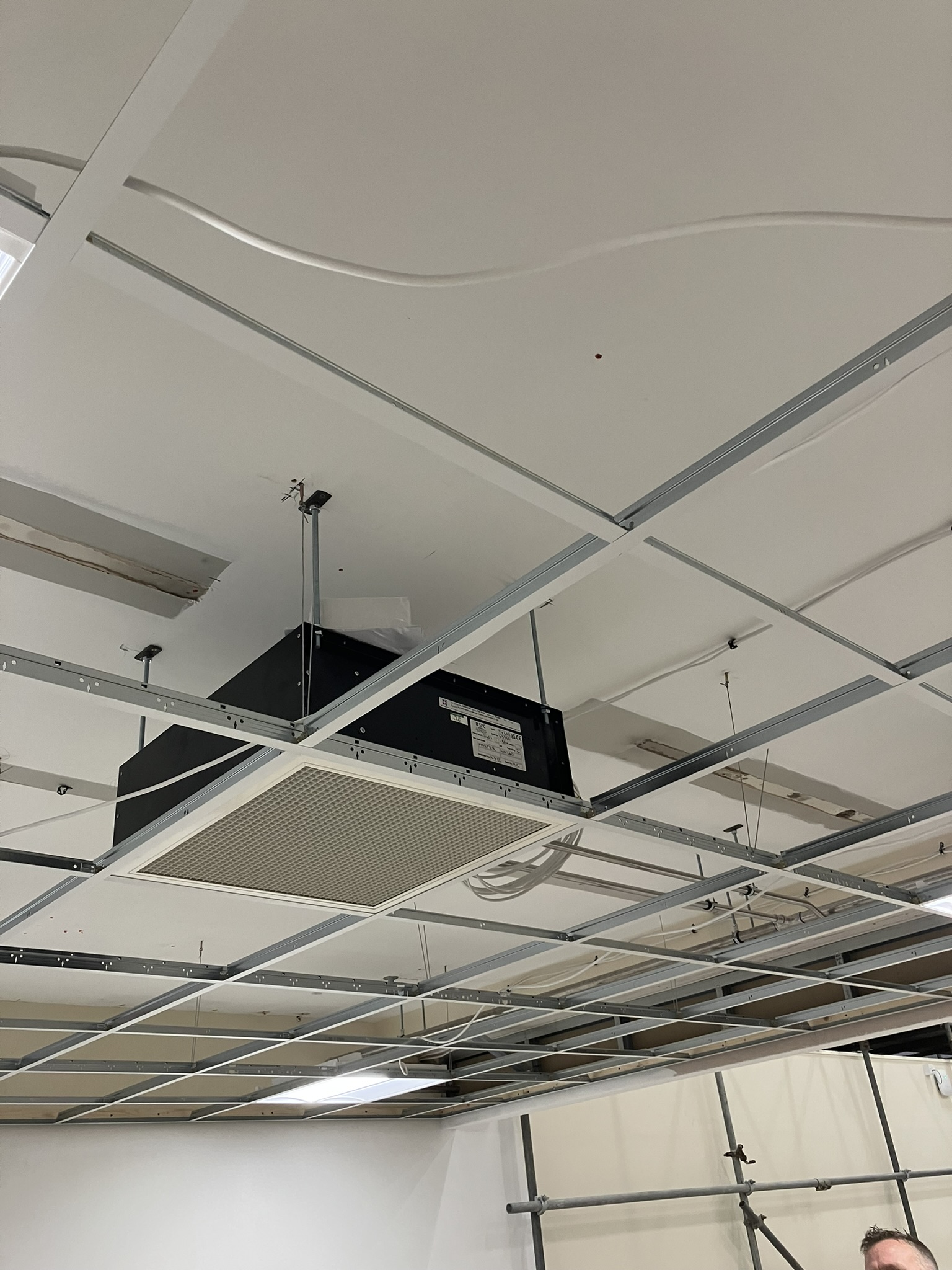

- Mounting: Horizontal ceiling-mounted with hinged-core grille
- Controls: Modulo thermostat controller (master unit)
- Motor: ECM low-carbon motor
- Additional features:
- EC white eggcrate grille
- LTC low-water temperature cut-out
- RAF reversed airflow
- TAP tamperproof access fasteners
- Heating duty:0–3.9 kW per unit (across three speed settings)
- Finish: Textured white RAL 9010
- Design basis: Air on 15°C, Water 80/70°C, 230V single phase
Outcome
The installation provided Newport Central Library with a modern, energy-efficient heating system across its third-floor spaces. The combination of wall-mounted and ceiling-mounted Fan Convectors delivered flexible heating control while supporting the library’s commitment to reducing energy consumption through ECM motor technology. The Modulo controllers allow library staff to manage temperatures precisely across different zones, maintaining comfortable conditions for visitors and staff throughout the building.
